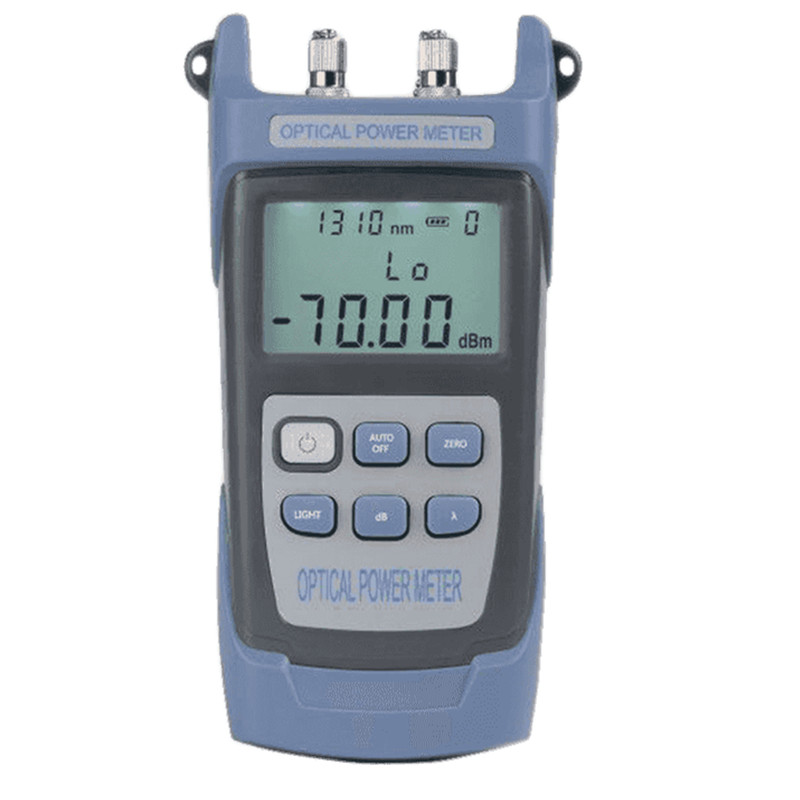

FOT3208 hand held optical power meter

FOT3208 hand held optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.

Inquire Online

Features

——

*User self calibration function *Comfortable LCD display and optional back light LCD display supports night operation *Power measurements in dBm or mw and insertion loss in dB *Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries *10 minutes Auto-off function can be activated or deactivated.

Specifications

Type	FOT3208A	FOT3208C
Wavelength(nm)	800~1700nm
Detector	InGaAs
Measurement Range (dBm)	-70~+3	-50~+26
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Resolution(dB)	0.01

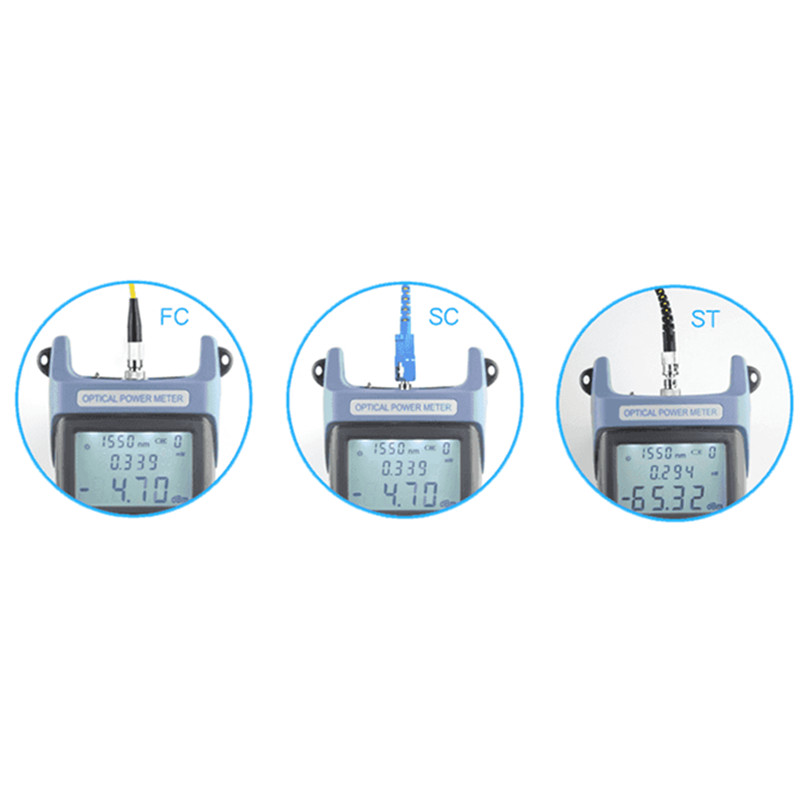

Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time	240 h with 1.5V Battery(3)
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	175x82x33
Weight(g)	310

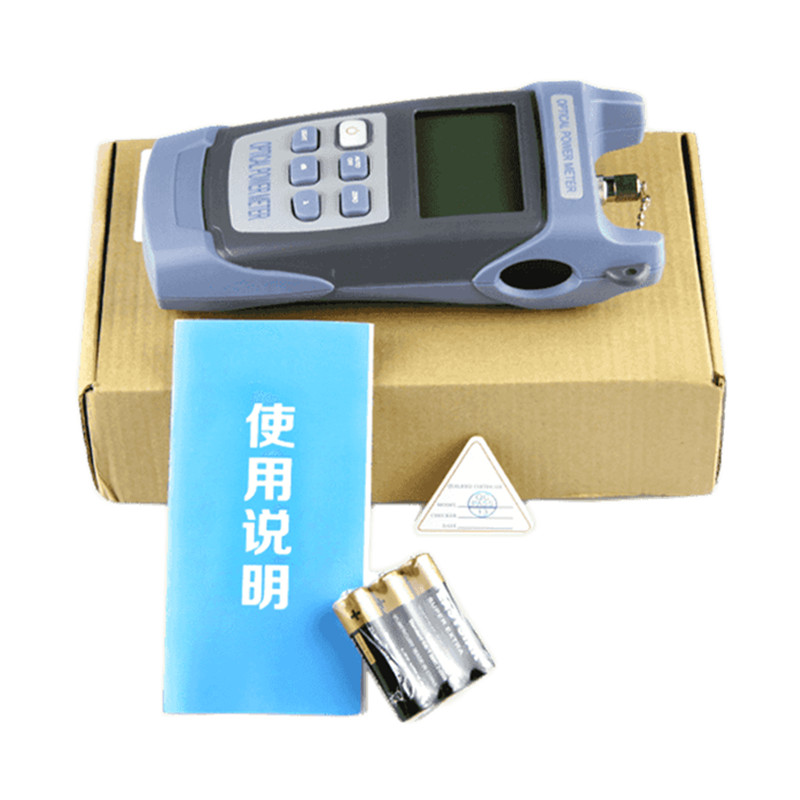

Standard Packages

MODEL	INCLUDES
All FOT3208 Models	FOT3208 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case.
