Product Brief
——

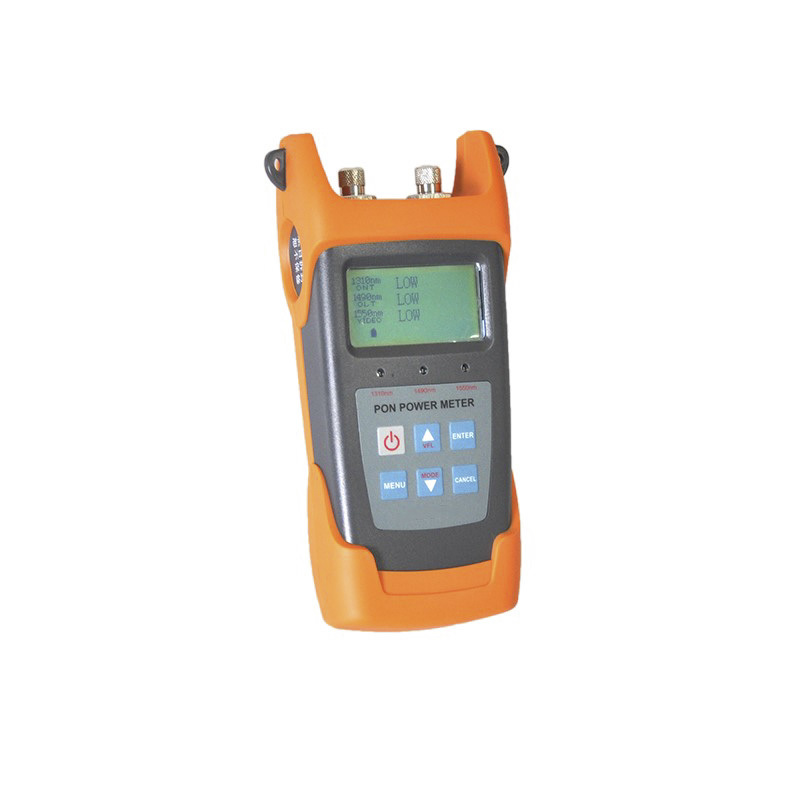

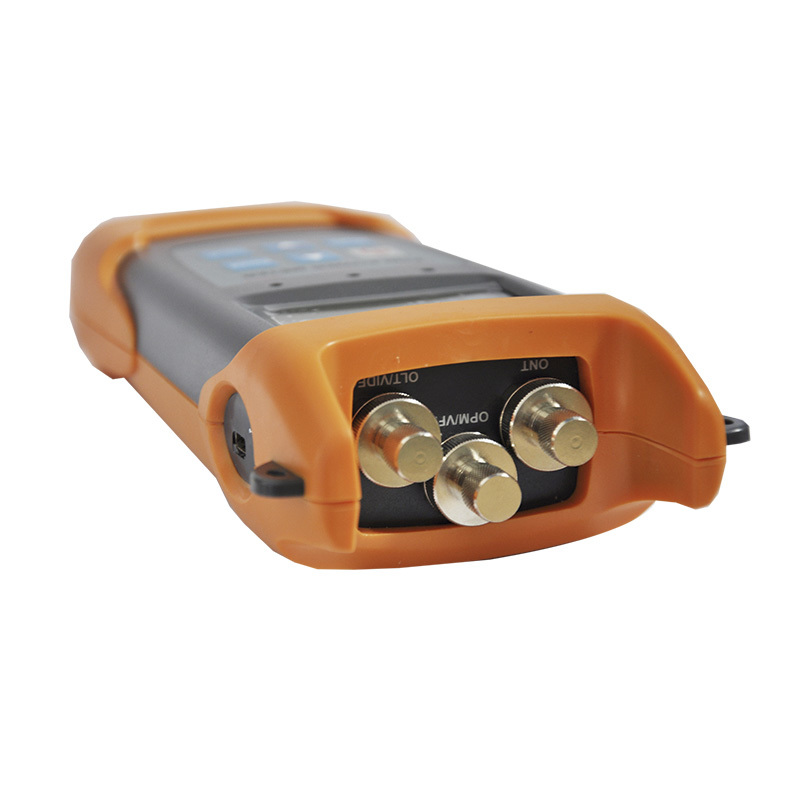

An optical power meter is an instrument used to measure absolute optical power or the relative loss of optical power through a length of fiber. In optical fiber systems, measuring optical power is the most basic, much like a multimeter in electronics; a conventional optical power meter typically measures in the 780-1650nm range.In an FTTX / PON network, it is generally required that three wavelengths in the fiber can be measured simultaneously, 1490nm and 1550nm downstream wavelengths, and 1310nm upstream wavelengths. Then a professional PON optical power meter came into being.Hand-held PON optical power meter is a test instrument specially developed for FTTX / PON passive optical network testing.
PON module | 3213 | 3213A | 3213AV | 3213AP |
1310 upstream measurement | ||||
Pass Zone(nm) | 1260nm～1360nm | |||
Measurement Range(dBm) | -40dBm～+10dBm | |||
Input power(max) | 15dBm | |||
Isolation@1490/1550(dB) | >40dB | |||
Burst mode measurement error | < ±0.5dB | |||
1490 downstream measurement | ||||
Pass Zone(nm) | 1470nm～1505nm | |||
Measurement Range(dBm) | -40dBm～+10dBm | |||
Input power(max) | 15dBm | |||
Isolation@1310/1550(dB) | >40dB | |||
1550 downstream measurement | ||||
Pass Zone(nm) | 1535nm～1570nm | |||
Measurement Range(dBm) | -40dBm～+20dBm | |||
Input power(max) | 25dBm | |||
Isolation@（1310/1490nm） | >40dB | |||
Measurement Accuracy | ||||
Connatural uncertainty(dB) | ±0.5dB | |||
Linearity(dB) | ±0.1dB | |||
Passing through insertion Loss(dB) | <1.5dB | |||
General Information | ||||
Detector Type | InGaAs | |||
Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter | |||
Fiber Type | SM 9/125um | |||
Measurement Unit | dB/dBm/xW | |||
Resolution (dB) | 0.01dB | |||
Operation Voltage(V) | DC 3.3V～5.5V | |||
Power Supply | 3pc1.5V battery | |||
Continuously Operation time (h) | PON: 90h | PON: 90h VFL: 50h | PON: 90h | PON: 90h OPM: 100h |
Operation Temperature(℃) | -10℃～60℃ | |||
Storage temperature(℃) | -10℃～60℃ | |||
Weight(kg) | 423g | 425g | 424g | 424g |
Application | ||||
 |  |  |  |  |
CWDM & DWDM Network | FTTx System, up streaming/down streaming test | CATV Fiber optic System | Metro/Access Network | BPON/EPON/GPON networks |
