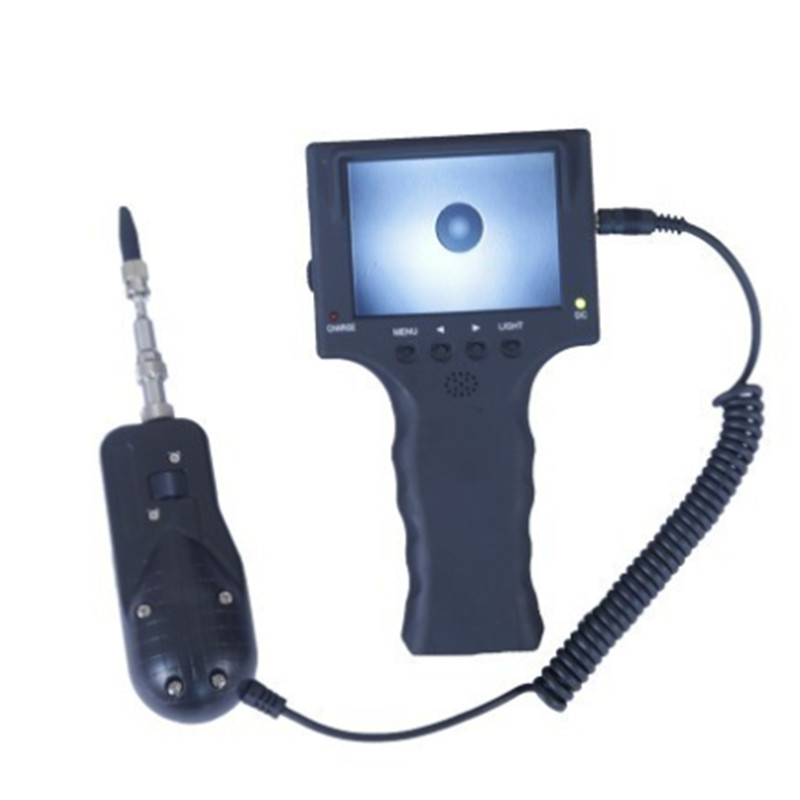

Fiber Video Microscope can offer 200 magnification for the fibers of 125um(diameter), single-mode and multi-mode are all included. ( based on the magnification of the 3.5inch display，which can inspect 685000um end-face.) The enlarged picture is then sent to the display through a video signal.
Consequently the status of fiber end-face is showed clearly.
Fiber Video Microscope features its unique configuration, because of which many places can be inspected conveniently. For example, it can test the patch cord directly. It can work with either male connector ends or inspect through female bulkhead adapters. As a result, many hard-to-reach connectors that are installed on the ‘backside’ of patch panels or inside hardware devices can be easily inspected. It eliminates the need to access the backside of patch panels or disassemble hardware devices, bringing more convenience to the inspection.Meanwhile, it avoids the potential eyes hazard, which may be caused by laser signal sent out from fibers if you inspect them directly. Since the product test the fiber through a display, such problem is totally not existed.
Actually, It can be applied to anther situations familiar with the testing circumstance. It is suitable for the archaeological study. Besides, some special electronic kits and deep-hole plug-in can also be detected and so on.
Screen and Magnification
3.5" TFT color LCD
640 x 480
Video in x 1
DC power out x1 (Support CCD camera of power source/Max electric currency 400mA)
2 LED(Power IND=green/Charging IND=Red)
Built-in rechargeable Lithium battery: 3.7V 2000mA/h
External power: DC 5V 1.0A adapter
180mm(L) x 98mm(W) x 30mm(H)/250g
insert to the FC/SC flange to inspect female fiber ends (dual use)
LC / F
insert to the LC/MU flange to inspect female fiber ends, no need to remove the fibers around when the connector port is of high-density (dual use)
Insert directly to inspect male fiber ferrules (normally SC,PC,ST three types)
Insert directly to inspect male fiber ferrules (normally LC,MU, two types)
Insert to the FC flange to inspect APC female fiber ends
insert to the SC flange to inspect APC female fiber ends
3.5 Inch Display
LC/ F ,SC FC/F,
2.5mm PC Male Tip
1.25mm PC Male Tip
