Product Brief

——

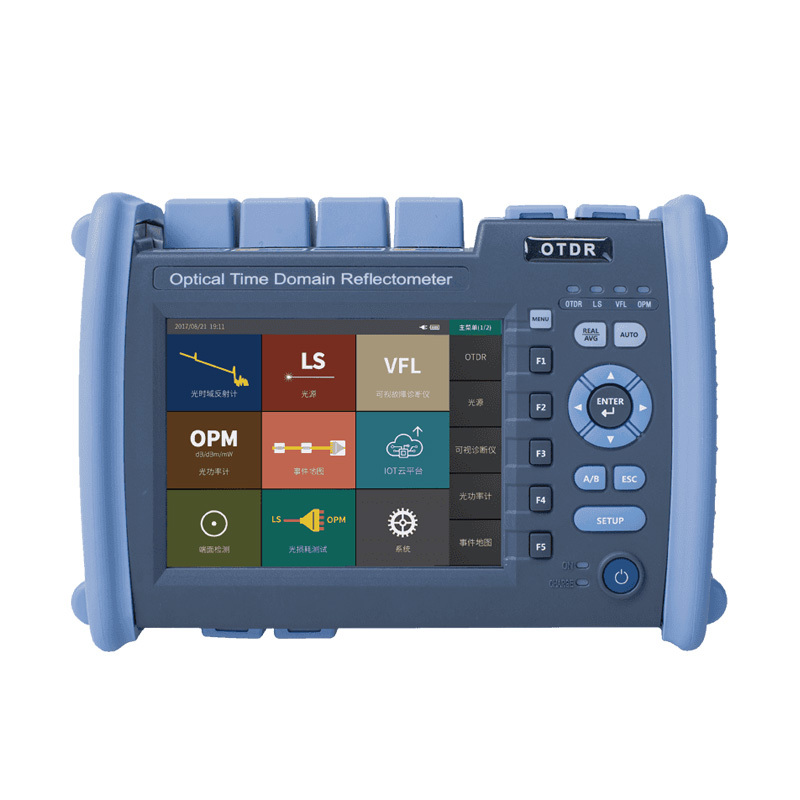

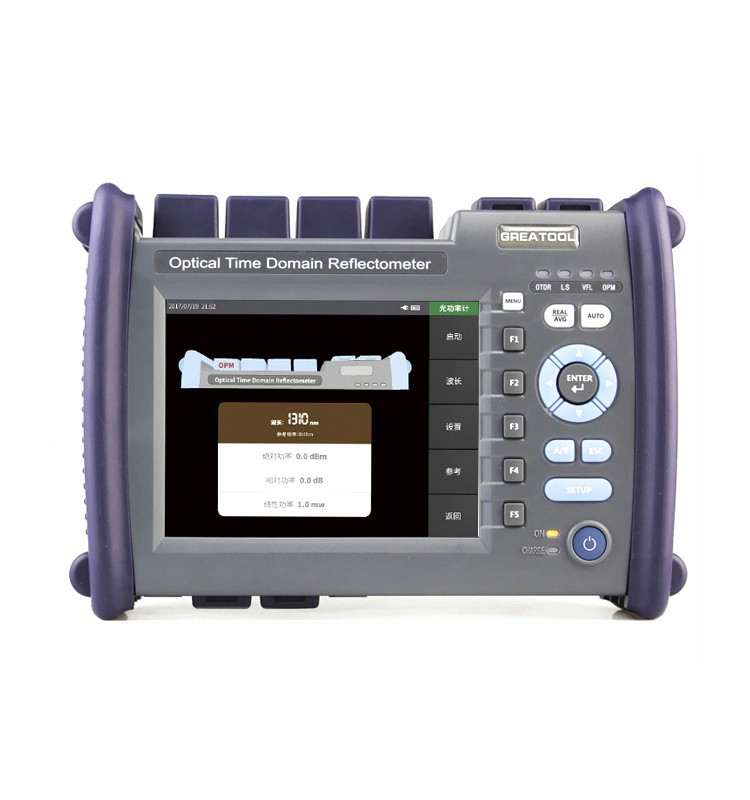

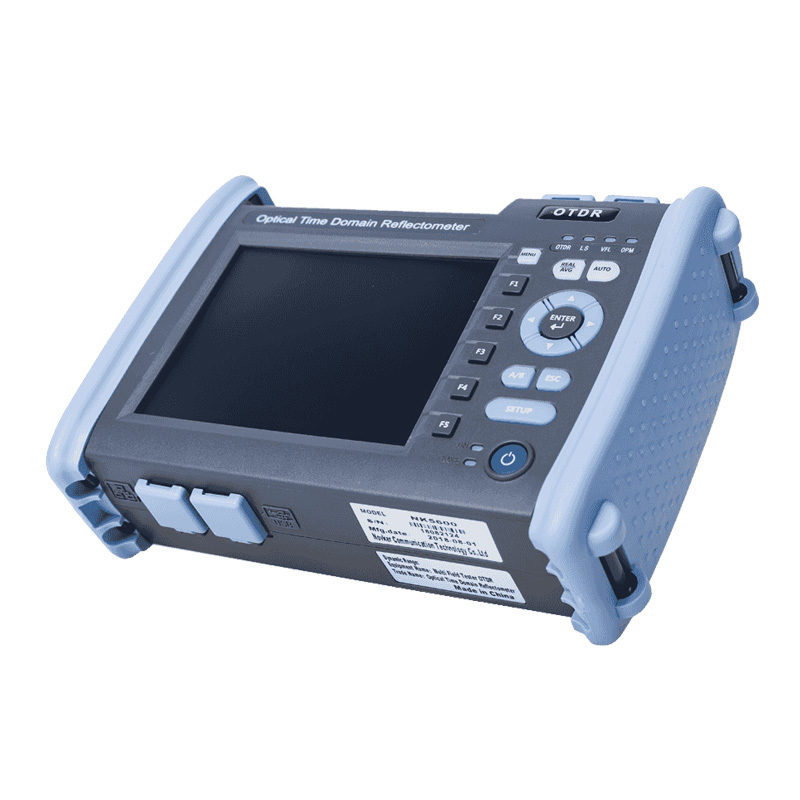

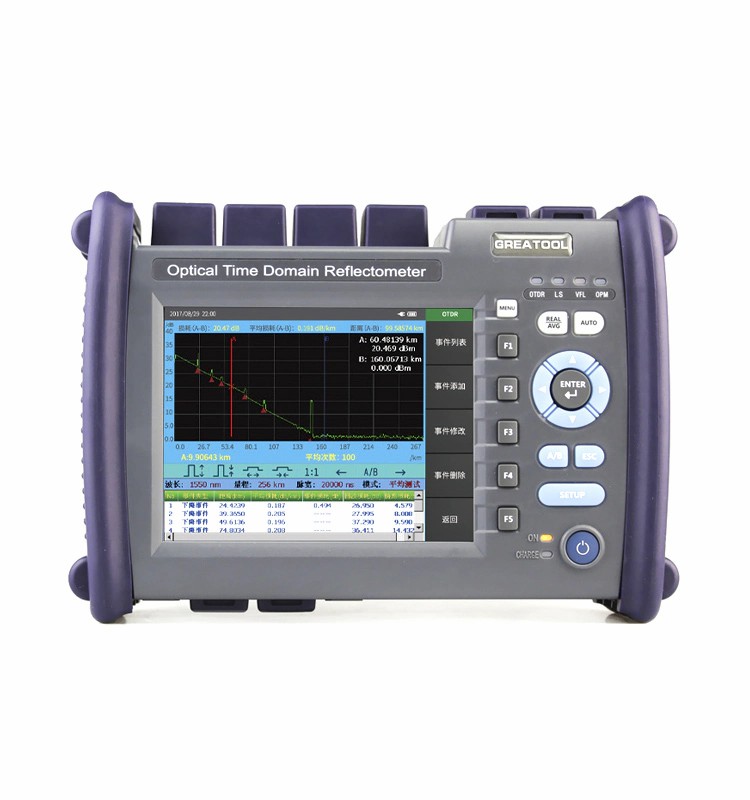

Optical time domain reflectometer (OTDR) is an instrument that understands the uniformity, defects, breaks, connector coupling, and other properties of the fiber by analyzing the measurement curve. It is based on the backscattering of light and Fresnel reverse principle. It uses the backscattered light generated when light propagates through the fiber to obtain attenuation information. It can be used to measure fiber attenuation, connector loss, fiber fault point location and understanding The loss distribution of the optical fiber along the length is an indispensable tool in the construction, maintenance and monitoring of optical cables

Product Features

PM Module (Power Meter, as optional function)

Wavelength Range (±20nm)	800~1700nm
Calibrated Wavelength	850/1300/1310/1490/1550/1625/1650nm
Test Range	Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional)
Resolution	0.01dB
Accuracy	±0.35dB±1nW
Modulation Identification	270/1k/2kHz, Pinput≥-40dBm
Connector	FC/UPC

LS Module (Laser Source, as optional function)

Working Wavelength (±20nm)	1310/1550/1625nm⑤
Output Power	Adjustable -25~0dBm
Accuracy	±0.5dB
Connector	FC/UPC

FM Module (Fiber Microscope, as optional function)

Magnification	400X
Resolution	1.0μm
View of Field	0.40×0.31mm
Storage/working Condition	-18℃~35℃
Dimension	235×95×30mm
Sensor	1/3 inch 2 million of pixel
Weight	150g
USB	1.1/2.0
Adapter⑥	SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC)

Notes:

① Typical, back light off, sweeping halted at 25℃, 12 hours typical continuous testing.

② Model T40F is integrated with optical filter, which allow them to test PON network online (by using 1625nm wavelength) and will not interrupt the fiber signal.

③ Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

Product advantage

OTDR optical time domain reflectometer

0.8m event blind area, 4m attenuation blind area, more accurate test

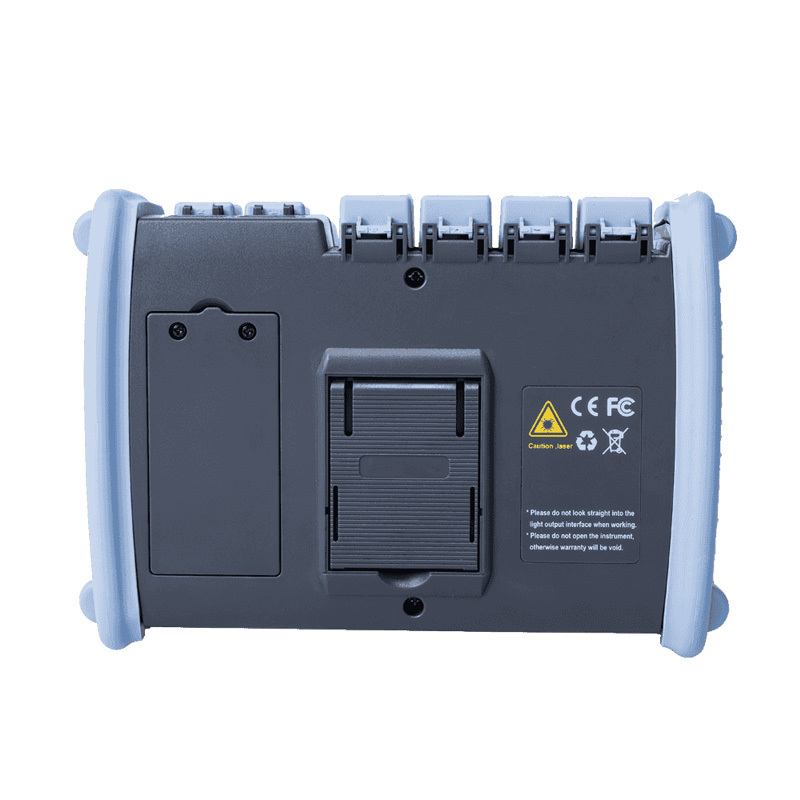

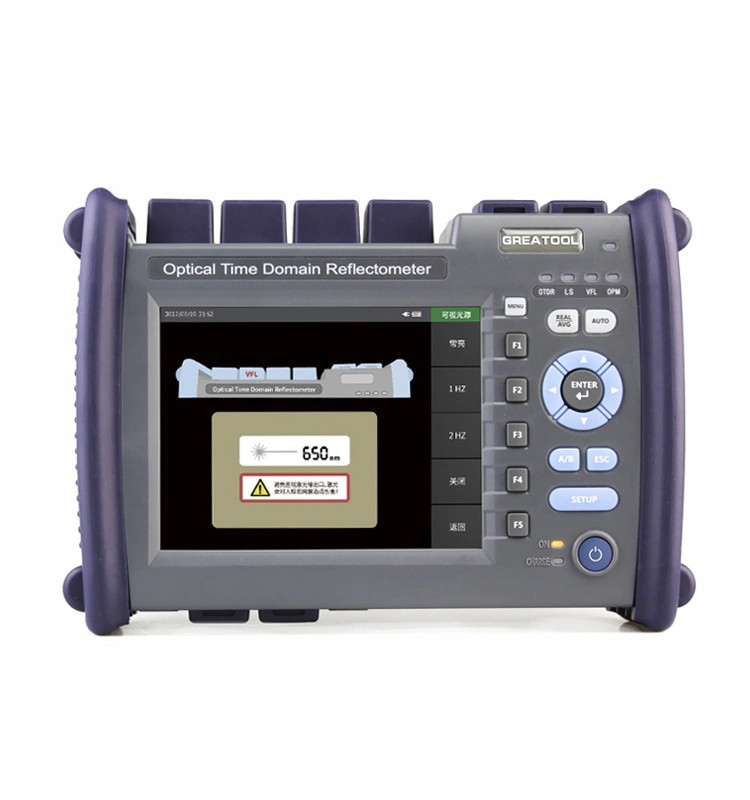

VFL red function

5MW, high power

OPM optical power meter function

High precision test range - 45 to + 20dbm

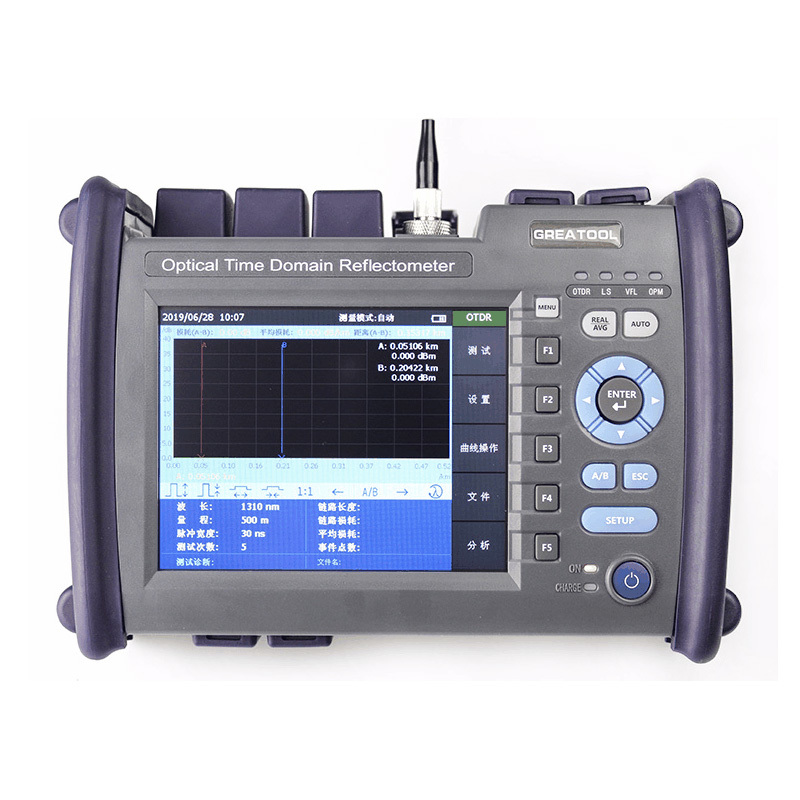

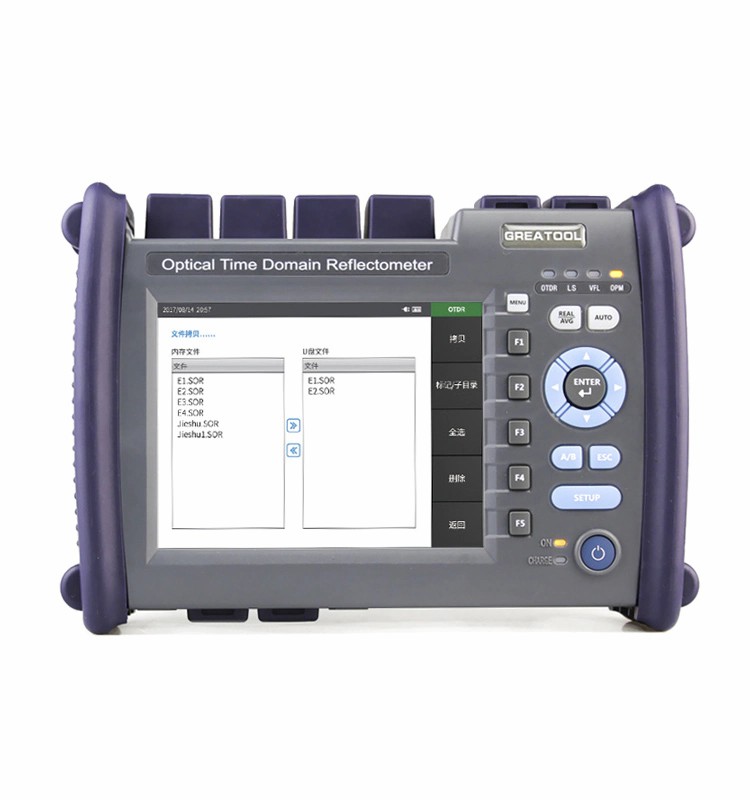

Large capacity data storage

Built in storage, more than 2000 curves can be stored, data can be exported, and test reports can be printed

Product parameters

Dimension	253×168×73.6mm 1.5kg (battery included)
Display	7 inch TFT-LCD with LED backlight (touch screen function is optional)

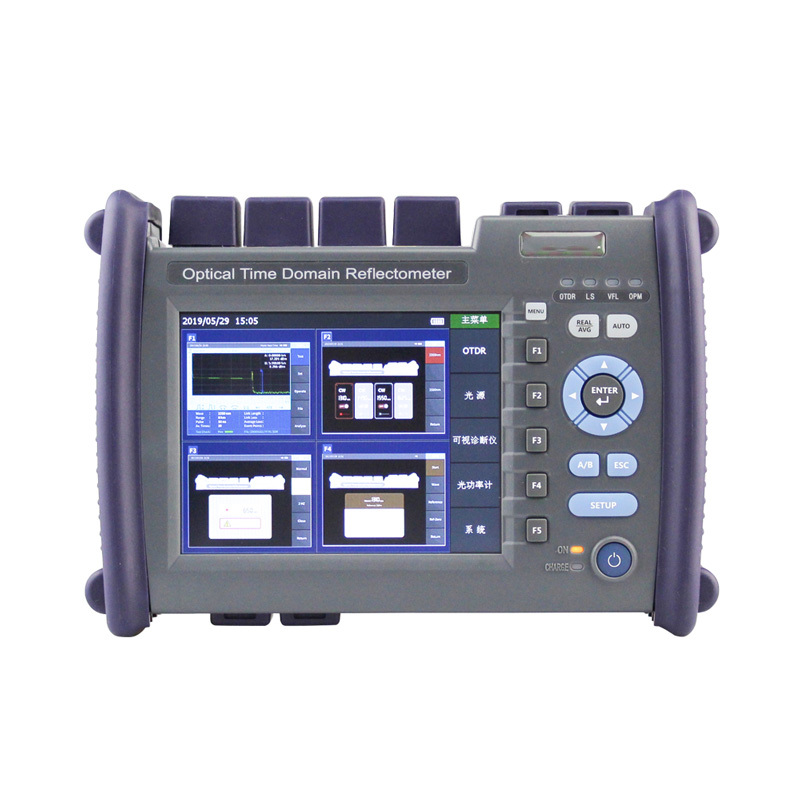

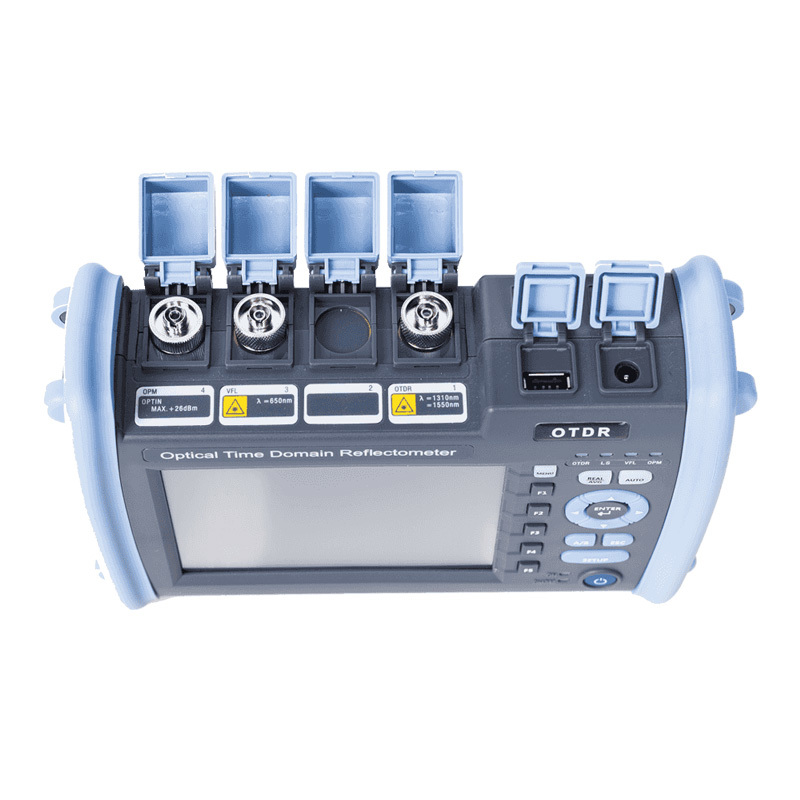

Interface	1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)
Power Supply	10V(dc), 100V(ac) to 240V(ac), 50~60Hz

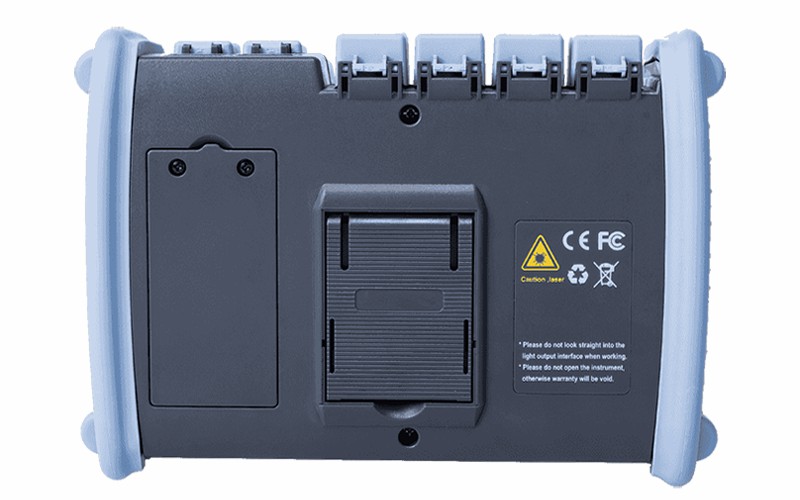

Battery	7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours①, Telcordia GR-196-CORE Charging time: <4 hours (power off)
Power Saving	Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes
Data Storage	Internal memory: 4GB (about 40,000 groups of curves)
Language	User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others)
Environmental Conditions	Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) Proof: IP65 (IEC60529)
Accessories	Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter

Technical parameter

Type②	Testing Wavelength (MM: ±20nm, SM: ±10nm)	Dynamic Range (dB)③	Event/Attenuation Dead-zone (m)④
FOT3302-D32	1310/1550	32/30	0.8/4
FOT3302-D35	1310/1550	35/33	0.8/4
FOT3302-S35	1650 (filter built-in)	35	0.8/4
FOT3302-T40F	1310/1550/1625	37/35/35	0.8/4
FOT3302-DM26	850/1300	26/28	0.8/4
FOT3302-Q40F	850/1300/1310/1550	26/28/37/35	0.8/4
FOT3302-Q40	1310/1490/1550/1625	35/33/33/33	0.8/4

Test parameter

Pulse Width	Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs
Testing Distance	Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km
Sampling Resolution	Minimum 5cm
Sampling Point	Maximum 128, 000 points
Linearity	≤0.05dB/dB
scale Indication	X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Reflectance Accuracy	Single mode: ±2dB, multi-mode: ±4dB
IOR Setting	1.4000~1.7000, 0.0001 step
Units	Km, miles, feet
OTDR Trace Format	Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up
Testing Modes	Visual fault locator: Visible red light for fiber identification and troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe
Fiber Event Analysis	-Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps)
Other Functions	Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison
