FOT3400 Mini Pro OTDR

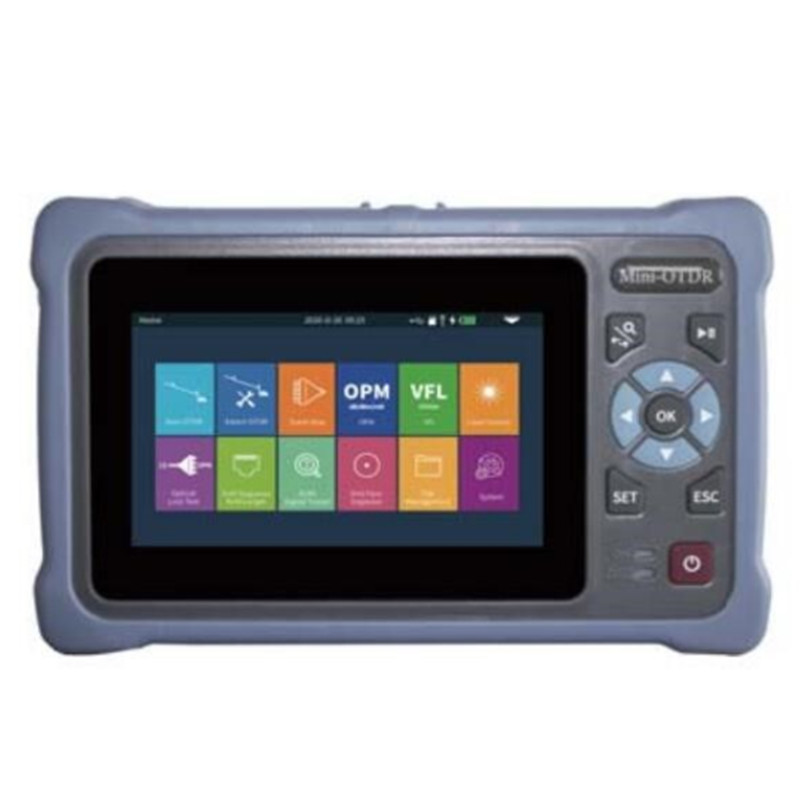

FOT3400 series OTDR adopts 4.3-inch capacitive touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and"computer level"file management to meet various test requirements in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves; it is equipped with 3400mAh high-density polymer lithium

battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank.

FOT3400 series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.

Product Features;

l Expert OTDR ： Professional measurement， curve/list/map are displayed simultaneously

l Auto OTDR： no complex settings，one key test

l OPM supports CW/ 270/330/1k/2kHz frequency identification

l VFL and LS can run in the background，multi task can be operated simultaneously

l LS supports CW / modulation mode output with adjustable output power

l RJ 45 cable tracker of digital radar，stronger anti-jamming ability

l Auto OTDR， expert OTDR，event map，OPM，LS，VFL, RJ45 cabletracking, RJ45 cable sequence，RJ45 cable length, end face detection，flashlight optical loss test

l RJ45 cable sequence/cable length test,up to 300m

l One click screen capture，easy to save the interface

Inquire Online

——

Specification

OTDR
Model	FOT3400S1	FOT3400S2	FOT3400D	FOT3400F1 (Live test)	FOT3400F2 (Live test)	FOT3400t (Live test)
Type	G.625 SM
Wavelength	1310nm±20nm	1550nm±20nm	1310/1550±20nm	1310nm±20nm	1550nm±20nm	1610nm±20nm
Dynamic Range	26dB	24dB	26dB/24dB	26dB	24dB	22dB
Event Blind Zone	2.5m
ATT Blind Zone	8m
Test Range	500m/1km/2km/4km/8km/16km/32km/ 64km/100km
Pulse Width	3ns /5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns /500ns /800ns/1μs/2μs/3μs/5μs/8μs/10μs/20μs
Ranging Accuracy	±(1m+Sample interval+0.005%X Test distance)
Linearity	±0.05dB/dB
Sample Points	16k~128k
Sample Resolution	0.05m~8m
Loss Resolution	0.001dB
Loss Threshold	0.20dB
Range Resolution	0.001m
Refractive Index	1.00000~2.00000
Reflection Accuracy	±3dB
File Format	SOR Standard File Format
Loss Analysis	4-point method/5-point method
Laser Safety Level	Class ll
Connector	FC/UPC(Interchangeable SC、 ST）
Refresh rate	3Hz(Typ.)
Multitasking	Support

OPM	LS	RJ45 Cable Sequence&Length
Wave range: 800nm~1700nm	Wavelength: Consistent with OTDR	Test Distance: ≤300m
Calibration Wave: 850/980/1300/1310/1490/1550/1625/1650nm	Laser Type: FP-LD	Others
	Power: ≥-5dBm(Adjustable)	Display：4.3 incheshs 800×480 IPS TFT-LCD Multi touch capacitive touch screen
Test Range : -70~+10dBm(Optional)/-50~+26dBm(Standard)	Stability : Stability： CW, ±0.5dB/15min (After 15min of preheating)	Power Supply :AC/DCadapter:input: 100V-240V, 50/60Hz, 0.6A output: 5V, 2A, Lithium battery: 3.7V,3400mAh
Resolution: 0.01dB	Connector: FC/UPC(Interchangeable SC、 ST)	Battery Working：Continuous test>12 h
Uncertainty: ±5%		Data Storage： internal storage: 8GB, ≥20 thousand curves
Uncertainty: ±5%		Data Interface: USB Type C
Frequency Identification: CW/270/330/1k/2kHz	Mode: CW270Hz/330Hz/1kHz/2kHz	Working Temperature: -10°C~+50°C
Frequency Identification: CW/270/330/1k/2kHz	Wave Recognition： Support	Working Temperature: -10°C~+50°C
Connector: Universal FC/SC/ST	Optical Loss Test	Storage Temperature:-40°C~+70°C
Wave Recognition： Support(Use inner LS)	Wavelength: Consistent with LS	Storage Temperature:-40°C~+70°C
VFL	IL Test: Support	Relative Humidity: 0~95% Non Condensing
Wavelength:650nm±20nm	RJ45 Cable Tracking	Relative Humidity: 0~95% Non Condensing
Output Power:≥10mW	Mode: Digital tracking	Weight: ≤0.5kg( Battery included)
Mode: CW/1Hz/2Hz	Distance: ≤300m	Weight: ≤0.5kg( Battery included)
Connector :FC/UPC(Interchangeable SC、ST)	Online/ Line Pair Tracking: Support	Size:173mm×109mm×45mm
Laser Safety Level: Class Ill	Online/ Line Pair Tracking: Support	Size:173mm×109mm×45mm
Standard configuration: Auto OTDR, Expert OTDR, Event Map, OPM, LS, VFL, RJ45 Cable Tracking(Including Cable Tracker) RJ45 Cable Sequence, RJ45 Cable Length, End Face Detection(Optional), Flashlight, Optical Loss Test

Note: FOT3400-Fl can test fiber with 1490/1550nm signal(power ≤-5dBm)

FOT3400-F2 can test fiber with 1310/1490nm signal (power ≤-5dBm)

FOT3400-T can test fiber with 1310/1490/1550nm signal (power ≤0dBm)

Configuration list:

Host(Battery included), Adapter, Data Line, 8G TF card(built-in OTDR, Analysis software/User's Manual), User's Manual, SC adapter, Qualification Certificate/ Service Guarantee Card, Calibration Certificate, Clean Cotton Slices, Instrument Backpack
