FOT3211 optical power meter

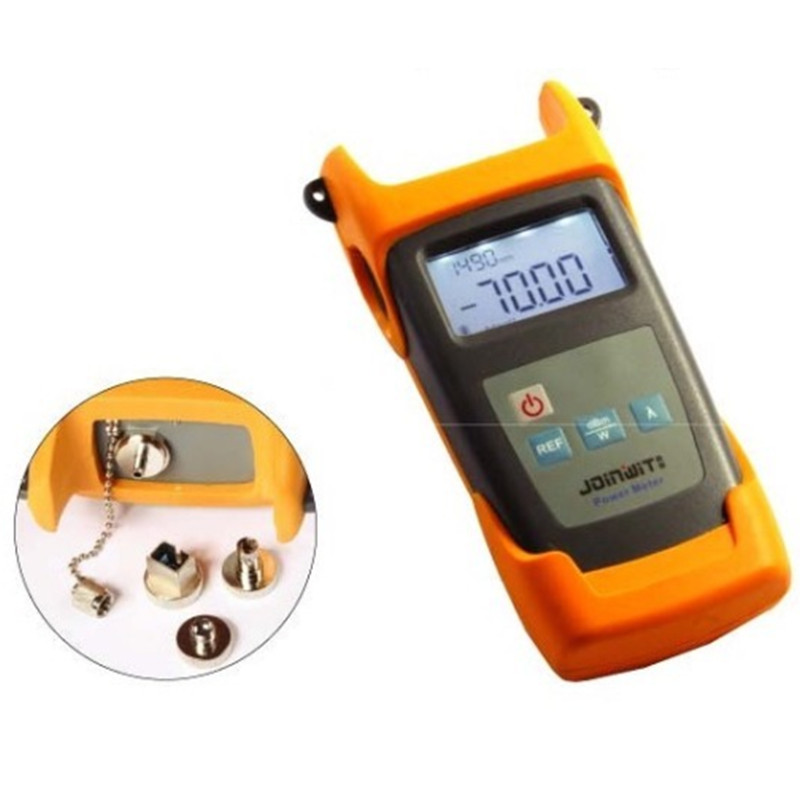

FOT3211 optical power meter Is a handheld optical power meter, newly released in 2015, which can be used for absolute optical power measurements as well as for relative loss measurements in optic fiber networks. An Ø1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, wide range of power measurement, high accuracy, user self-calibration function and reference power level storage.

Inquire Online

——

Features

* Wide dynamic measurement range (up to 80dB)

* Reference power level storage(Ref Setting)

*User self-calibration function

*Comfortable LCD display and backlight LCD display supports

night operation.

* Power measurements in dBm or mw and insertion loss in dB

*10 minutes Auto-off function can be activated or deactivated.

* AA alkaline batteries can last more than 140 hours, AC adaptor also available

* Low battery indication

Applications

Telecom Maintenance

CATV Maintenance

Fiber Optic lab testing

Other Fiber Optic Measurements

Specifications

MODEL	FOT3211A	FOT3211C
Wavelength(nm)	800~1700nm
Detector Type	InGaAs
Detector Size	Ø 1.0mm
Measurement Range (dBm)	-70~+10	-50~+30
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Resolution(dB)	0.01
Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time	140 h with 1.5V Battery(3pcs)
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	190X100X50
Weight(g)	370

Standard Packages

MODEL	INCLUDES
All FOT3211 Models	FOT3211 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
