FOT-3200 Mini OTDR


1. 24dB dynamic range.60km precision test


2.Live signal detection---APD effective protection



3. 3m Event dead zone


4.one-click automatic test,file auto saving, test result analyze automatically


5.1.5m fall protection

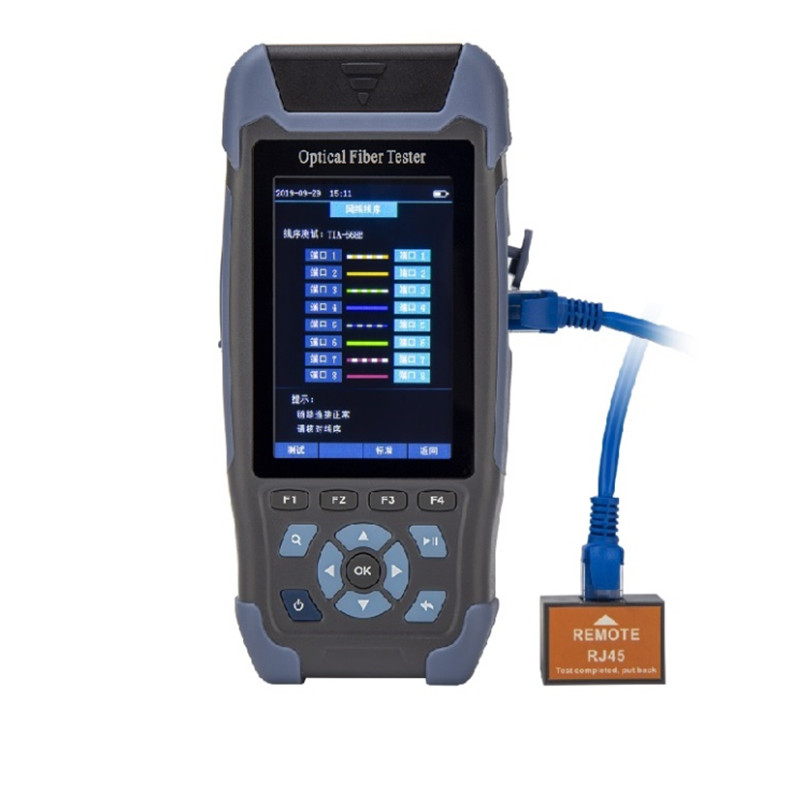

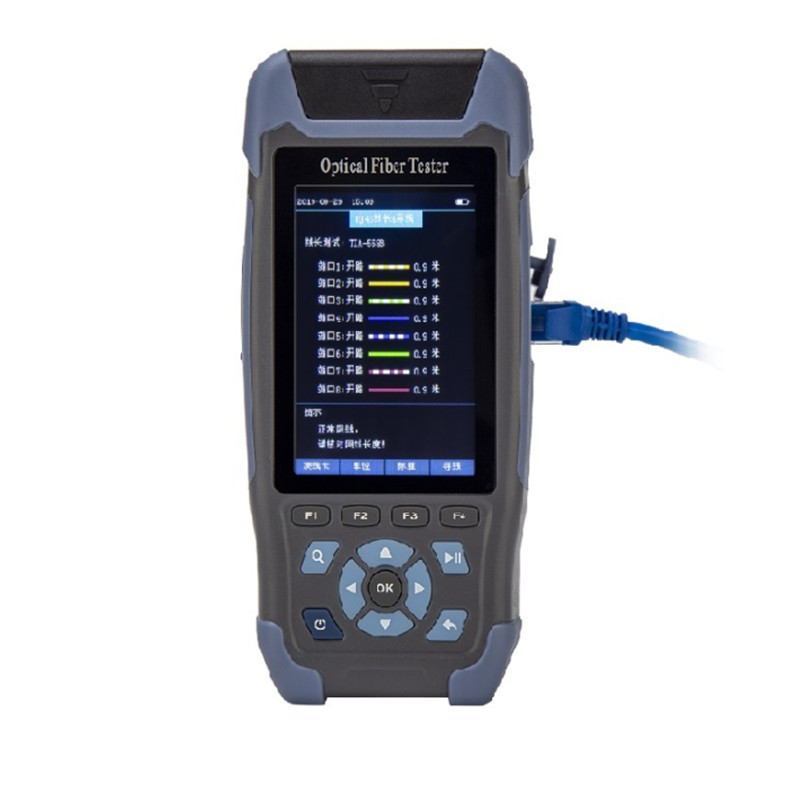

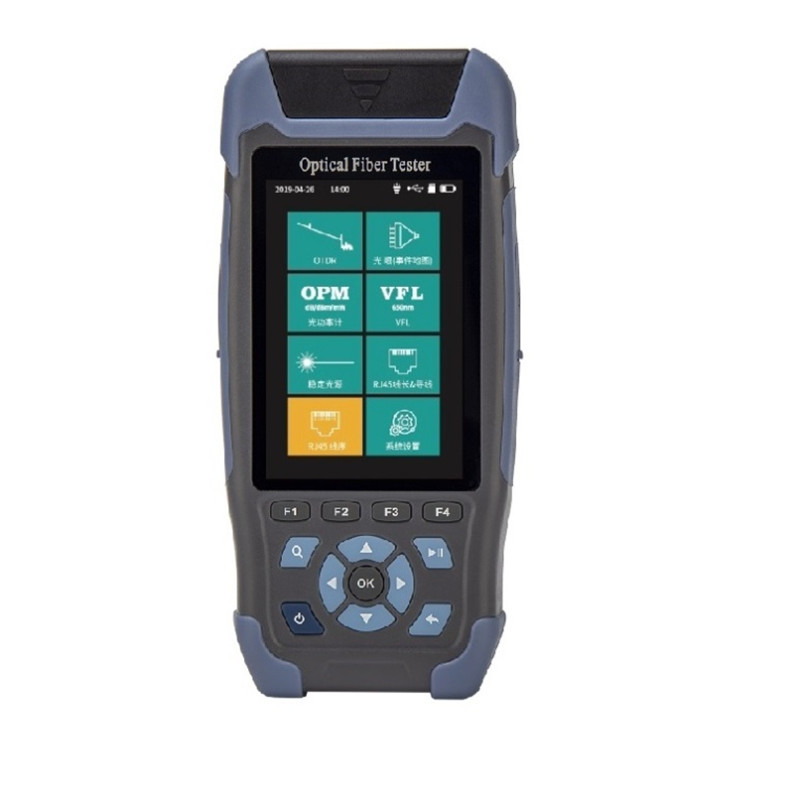

6. OPM, OLS, VFL,RJ45 test, Ilom-event map optional




——

Mini-Pro OTDR

Model

FOT3200

Wavelength

1310nm/1550nm±20nm

Fiber Type

SMF

Dynamic   Range

24/22dB

Event Blind Zone

8m

ATT Blind Zone

3m

Test Range

500m~60km

Pulse Width

3ns~10us

Ranging accuracy

±1m+   Sampling interval +0.005×Test   distance

Loss accuracy

±0.05dB/dB

Sampling Points

16k~256k

Sampling resolution

0.05m~8m

Reflection accuracy

±3dB

Data Storage

Internal≥500ExternalTF Card

Laser Safety Level

Class

file format

SOR Standard file format

Interface type

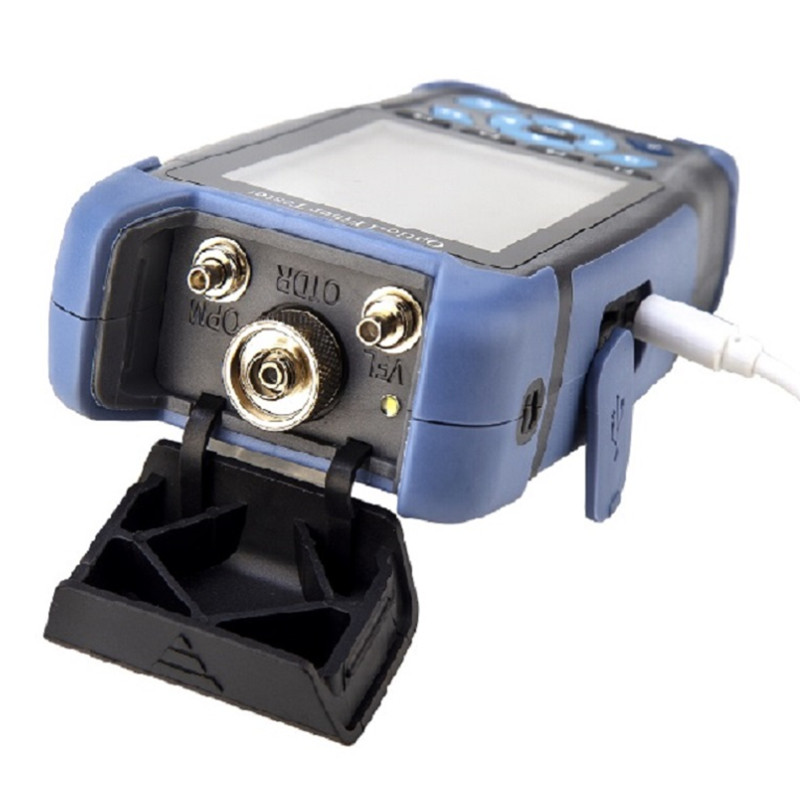

FC/UPCInterchangeable SCST

Other Parameters

Display

4.59 inch Color LCD

Data Interface

Micro USB

External storage

TF Card

Power Supply

Polymer   LithiumBattery3.7V, 4000mAh

Adapter5VDC,2A

Battery Life

Standby7.5hMeasuring time4hours

Working Temperature

-1050

Storage Temperature

-2070

Relative Humidity

095 Non Condensing

Weight

About 1.2kg

Size

173mm×82mm×37mm
