Product Brief

——

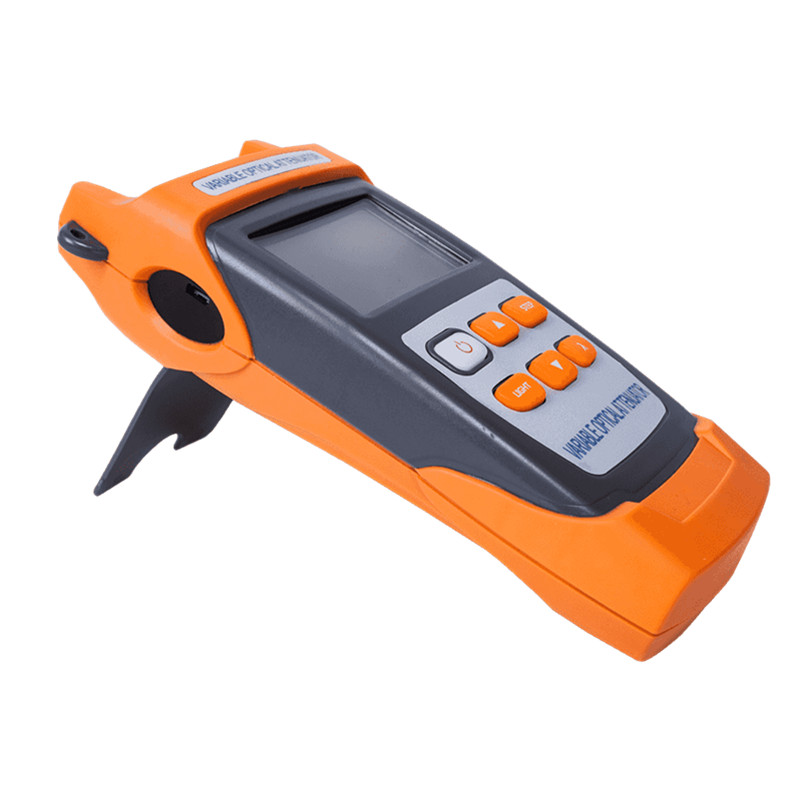

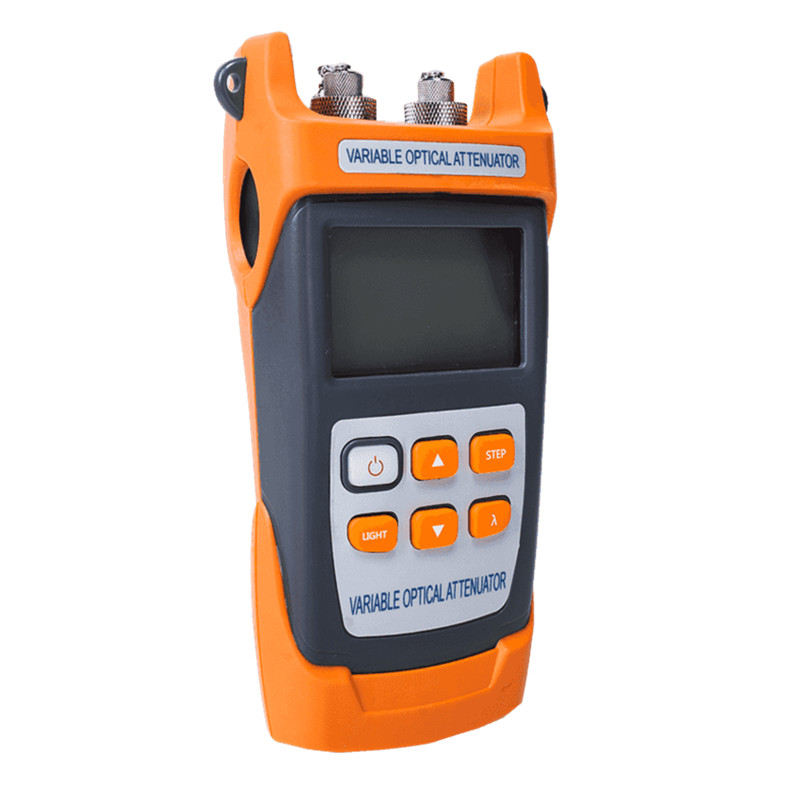

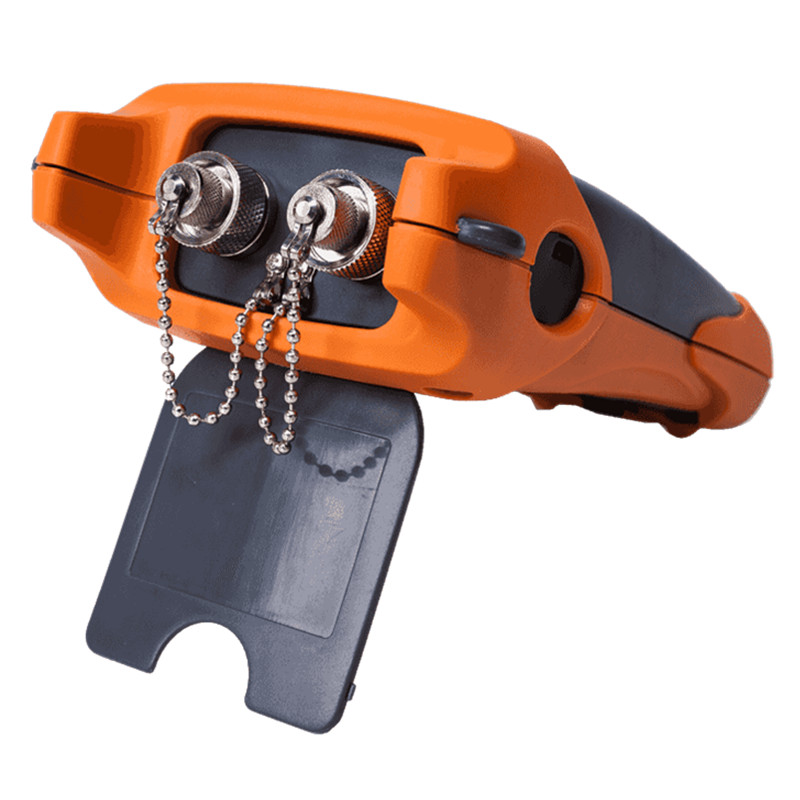

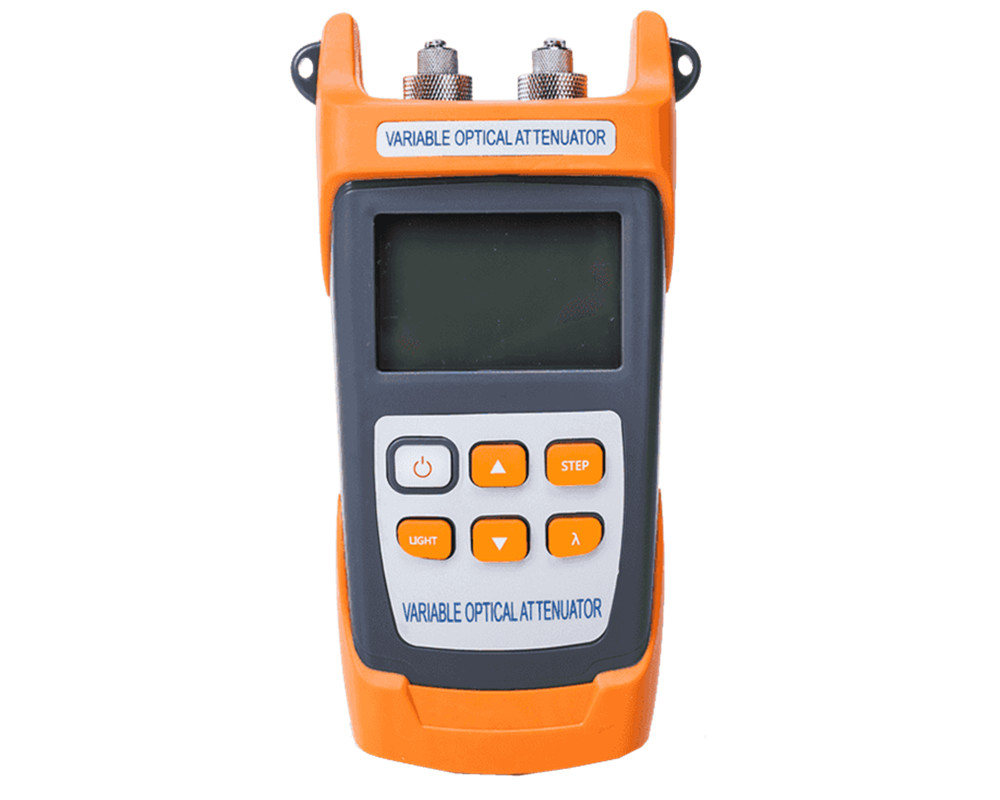

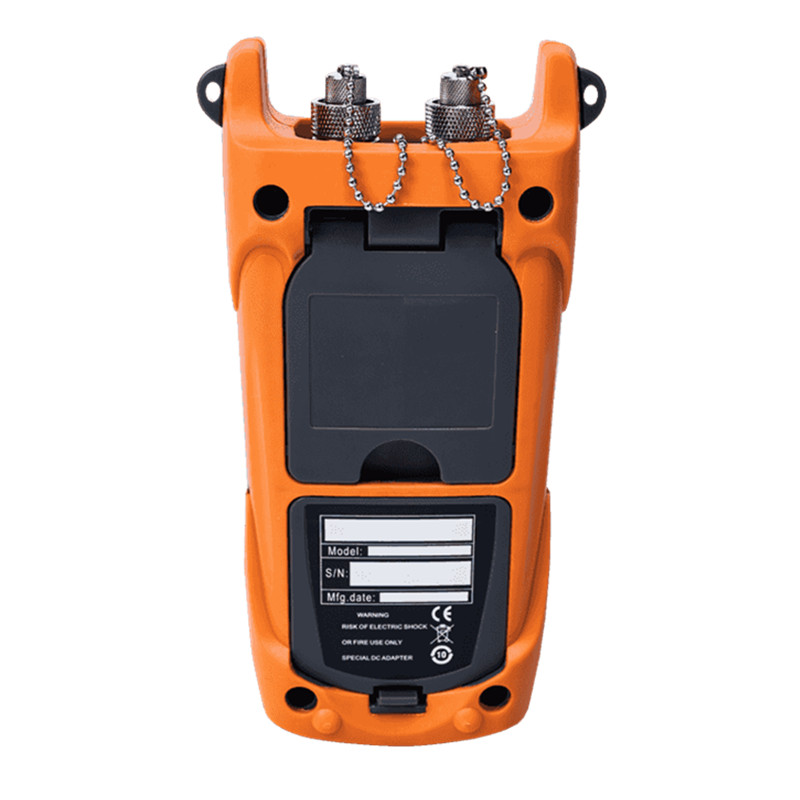

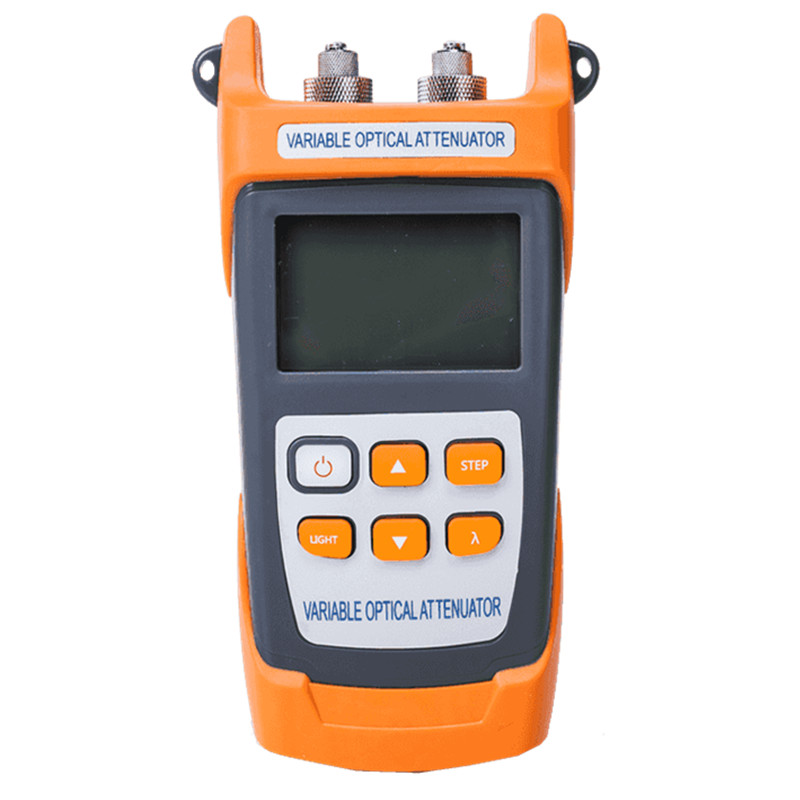

FOT3307 handhold optical variable attenuator is used for continuously variable optical signal attenuation. As the attenuator is used in the laser system for the on-line testing, therefore, FOT3307 can be used in the digital system of communication devices (such as: PHD, SDH) and also in the system of adopting analog modulation (CATV)

Main Features

* Attenuating range upto 80db:0-80db

* Low insert loss:.1.0db

* 10 minutes Auto-off function can be activate and deactivate with keypad operation.

* Attenuating Accuracy: ±0.3dB

* Portable, rugged, lightweight; Easy to use.

Type	FOT3307
Attenuating wavelength Range	850/1300/1310/1490/1550/1625/1650nm
Fiber Model	9/125um SM
Optical Connector	FC/PC
Calibrated wavelengths	1310/1490/1550/1625nm
Measurement Range(optional)	0~30dB,	0~40dB,	0~60dB,	0~80dB
Resolution	0.1dB
Minimize Insertion Loss	＜1.0dB
Linearity	±0.5dB
Repeating	±0.1dB		±0.1dB(0-40db) ±0.25dB(40-80db)
Attenuating Accuracy	±0.25dB		±0.25dB(0-40db) ±0.4dB(40-80db)
Return Loss at Input/ Output	＞35dB（typical value40dB）
Max input	＋18dBm
Displaying type	lattice 128*64 black and white, white back ground light
Operation temperature	0~40℃
Operation Time	40 hours
Storage temperature	-10~60℃
Weight	180g
