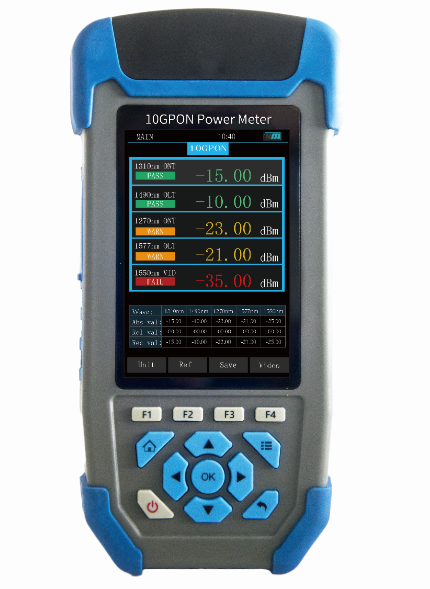

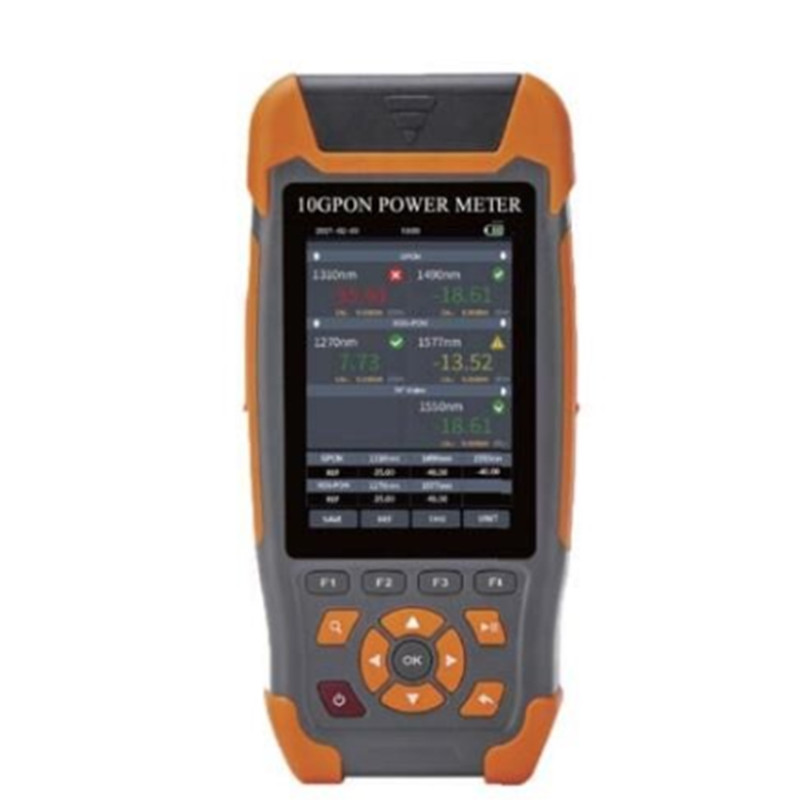

FOT3239C 10G PON Power Meter

Ø  3.5-inch TFT color screen

Ø  Compatible with EPON, GPON and next generation 10G-EPON/XG-PON power measurement functions

Ø  5 wavelength power value simultaneous measurement display

Ø  The instrument can set the measurement threshold to determine the pass, warning, fail state

Ø  Support VFL and standard OPM module functions

Ø  Data storage function up to 1000

Ø  Optional end-face microscope tester


——

The 10G PON power meter is suitable for the traditional or next generation PON network testing. It can simultaneously measure the voice, data and video signals on 1490nm/1550nm/1577nm (downlink spectrum) and 1270nm/1310nm (burst mode uplink spectrum) optical fiber, the same screen displays the signal power of each of the 5 wavelengths, which enables the maintenance personnel to truly master the power value of the single wavelength optical signal on the line. It is an ideal choice for PON network engineering, construction and maintenance to detect and analyze optical fiber with optional end-face detector and judge whether the signal power is up to the standard by threshold data set by the instrument itself.


PON   Power Meter Mode

Measuring wavelength

1270nm

1310nm

1490nm

1550nm

1577nm

Measuring rangedBm

+13-40

+13-40

+13-50

+25-50

+10-50

Spectral passband(nm)

1270±10

1310±20

1490±10

1550±10

1577±6

Insertion lossdB

≤1.5

Uncertainty dB

≤0.5

Interface type

(FC/SC)/APCoptional

Display resolutiondB

0.01

Threshold settings

10group

Data storage

1000

Standard OPM mode

Measuring rangedBm

+26-50

Calibration wavelength(nm)

850/1300/1310/1490/1550/1625

Uncertainty dB2

≤0.5

VFL

Wavelength (nm)

650±10

Output powermW

10

Modulation frequency

Lighting form1HZ

Others

Operating temperature (℃)

-10+60

Storage temperature (℃)

-25+70

Relative humidity

0%95%RH

Communication interface

Micro USB

Power supply

Rechargeable 3.7V lithium battery/Micro USB

Operating time(h)

Operating time ≥20Hstand-by time ≥60H

Dimension (mm)

188mm×88mm×44mm

Weight (g)

400
