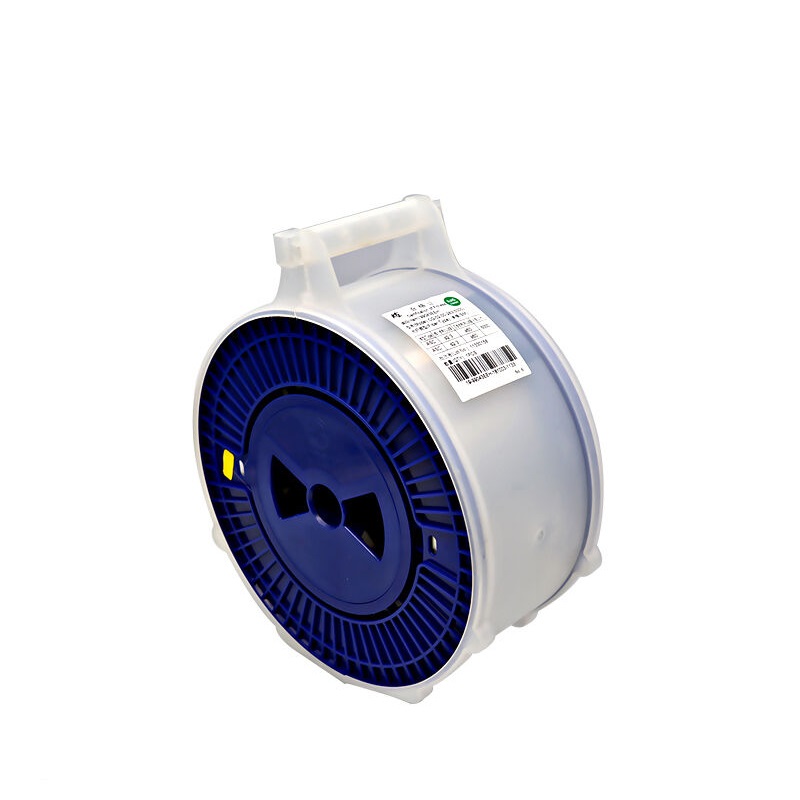

OTDR Launch Cable

Inquire Online

——

OTDR Launch Cable is designed to aid in the testing of fiber optic cable when using an OTDR. OTDR Launch Cable Box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDRs launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths.

Features

* Calibration Compound Latch for positive seal

* Easy opening with locking feature

* Non metal construction will not dent, corrode, or conduce electricity

* Water and dust prove allowing the unit to be taken into almost any environment

Specification

Product name	OTDR Launch Cable
Fiber	SM.G657A
Length	3km
Connector	To to defined
Operating temperature	-40° to +85°C
Insert Loss	< 0.2dB
Typical Loss	< 0.36dB @ 1310nM for 1000 meters
