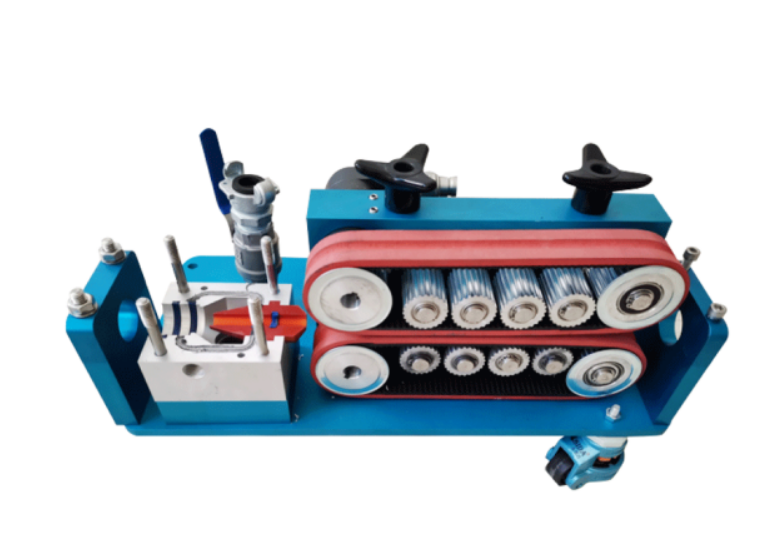

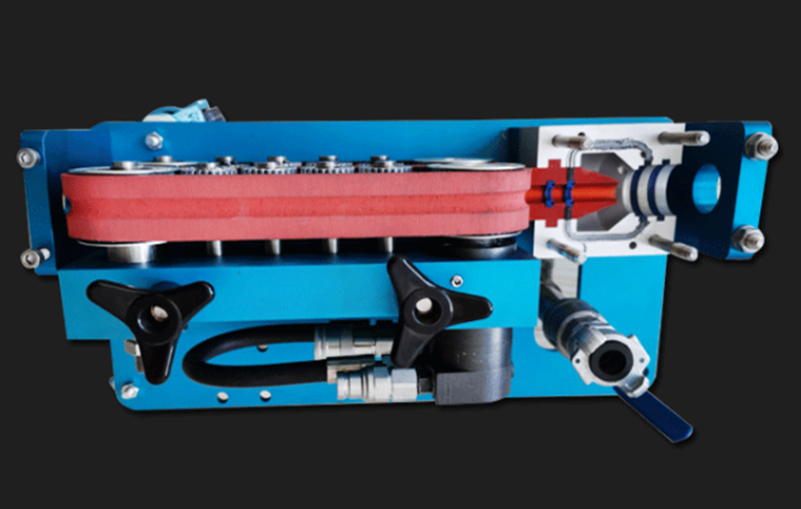

FOT700C Cable Blowing Machine

Introduction

The Cable blower is designed for laying communication cables (mainly fiber optic, coaxial and multi-strand cables) into pre-applied pipes. The FOT700C series operates according to the "air blowing" mode: the communication optical cable, cable or power cable is pushed into the pipe by means of a mechanical push cable device, while the air compressor sends a strong airflow into the pipe through the air-tight chamber of the air blower. The high-speed airflow creates a drag force on the surface of the optical cable, which promotes the optical cable to move forward. Improve work efficiency and protect the outer protective layer of the optical cable.

The main structure of FOT700C cable blowing machine adopts imported aluminum alloy material, which is corrosion-resistant, light in weight, high in hardness, and not easily deformed or damaged; the main drive motor adopts imported motor, which is small in size and large in power, easy to maintain and adapt to various environments; the conveyor belt is processed with imported materials , the degree of hardness and friction is suitable, and it is not easy to damage the outer skin of the optical cable;

Optical cable air blowing technology is widely used in: communication Internet operations, highways, information railways, petroleum and petrochemical pipelines, national defense communications, water conservancy projects, large building office spaces, shopping malls, residences, etc.

Inquire Online

——

The main structure of FOT700C cable blowing machine adopts imported aluminum alloy material, which is corrosion-resistant, light in weight and high in hardness, not easy to be deformed or damaged; the main drive motor adopts imported motor, which is small in size and large in power, easy to maintain and adapt to various environments; the conveyor belt is processed with imported materials , the degree of hardness and friction is suitable, and it is not easy to damage the outer skin of the optical cable;

FOT cable blowing machine is currently divided into two styles: FOT700CQ pneumatic type and FOT700CY hydraulic type。

FOT700CQ Specification：

Applicable pipes	mainly suitable for electrical and optical cables with a diameter of 6 to 16mm, suitable for HDPE or PE pipes with an outer diameter of 32 to 40mm;
Host net weight	22kg
Volume	500280320mm, lengthwidthheight
Power source	6bar～12bar compressed air
Working pressure	8bar～16bar
Scope of application	GYTA, GYTS pipeline optical cable below 144 cores; 16mm or below power cable; 1 to 3 outer 10mm, 8mm, 6mm HDPE micro pipes;
Air blowing length	600-2000 meters (depending on the terrain and the laying quality of the silicon core pipe)
Maximum push speed	120 m/min, recommended push speed: 60 m/min;

；

T700CQ Highlights

Small and lightweight, easy to operate, suitable for a variety of environments, FOT700CQ type cable blowing machine is more suitable for air-blown oil and petrochemical pipelines accompanying optical cables, highways and other optical cables with a diameter of less than 14mm, and compared with FOT700CY hydraulic type cable blowing machine, it saves the need for handling hydraulic power source If the air compressor cannot be placed in place in special environments, the buried silicon core pipeline can be used to introduce high-pressure gas for cable blowing and laying.；

T700CQ Standard package(needs to works with air compressor)

High pressure air belt	10
cable plugs	3
conveyor belts	2
air compressor joints	3
sealing rings	8
oil and gas separator	1
silicon core tube scissors	2

FOT700CY Specification：

Applicable pipes	mainly suitable for electrical and optical cables with a diameter of 8 to 25mm, suitable for HDPE or PE pipes with an outer diameter of 32 to 50mm;
Host net weight	24kg
Volume	520280280mm, lengthwidthheight
Power source	hydraulic, 3～5MPa
Working pressure	8bar～16bar
Scope of application	GYTA53, GYTA, GYTS53 pipeline optical cable with 288 cores or less; electric optical cable with diameter of 25mm or less; 1 to 4 HDPE micropipes with outer diameter of 12mm, 10mm, 8mm, 6mm
Air blowing length	600-2000 meters (depending on the terrain and the laying quality of the silicon core pipe)
Maximum push speed	120 m/min, recommended push speed: 60 m/min

FOT700CY Highlights：

Small and lightweight, easy to operate, suitable for a variety of environments, FOT700CY hydraulic optical cable air blower is suitable for air blowing optical cables with a diameter of 10mm ~ 25mm, with strong power；

FOT700CY Standard package：

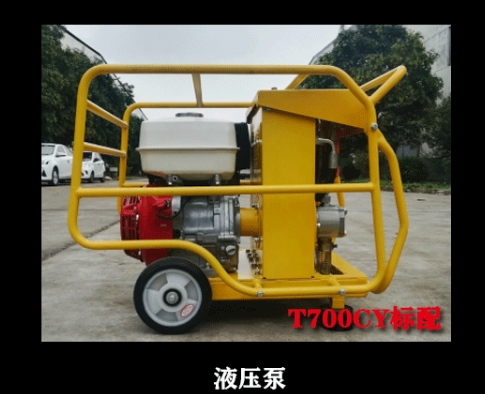

hydraulic power source	1
Oil pressure pipe	10m*2
cable plugs	3
conveyor belts	2
air compressor joints	3
sealing rings	8
oil and gas separator	1
silicon core tube scissors	2
