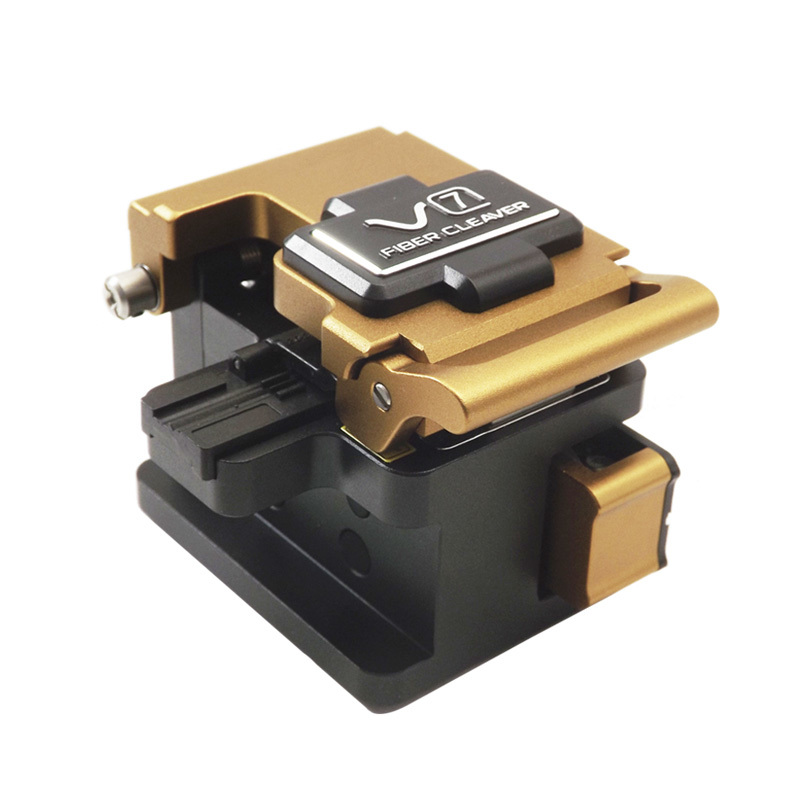

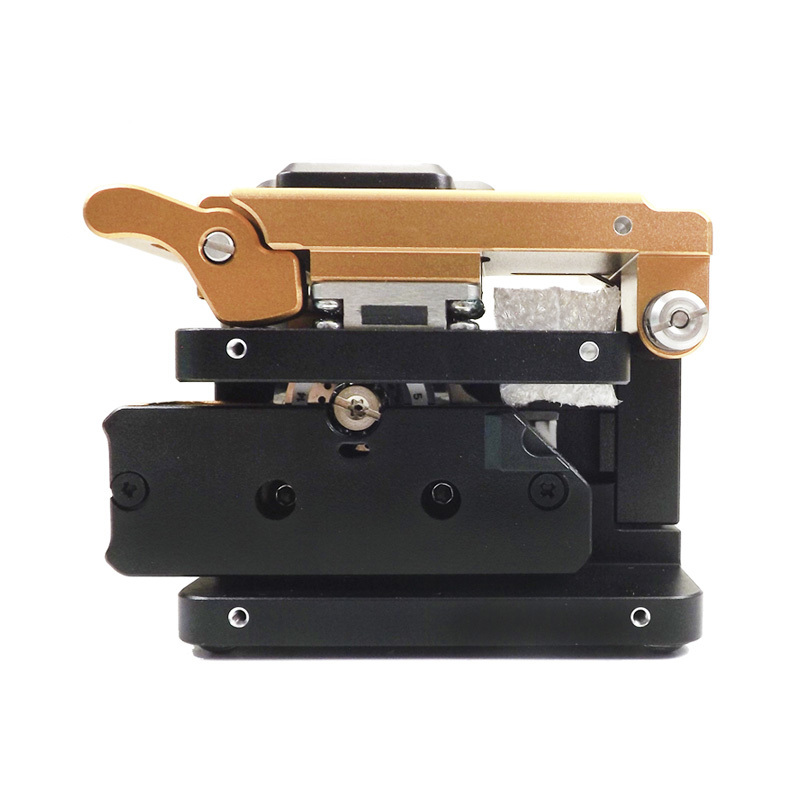

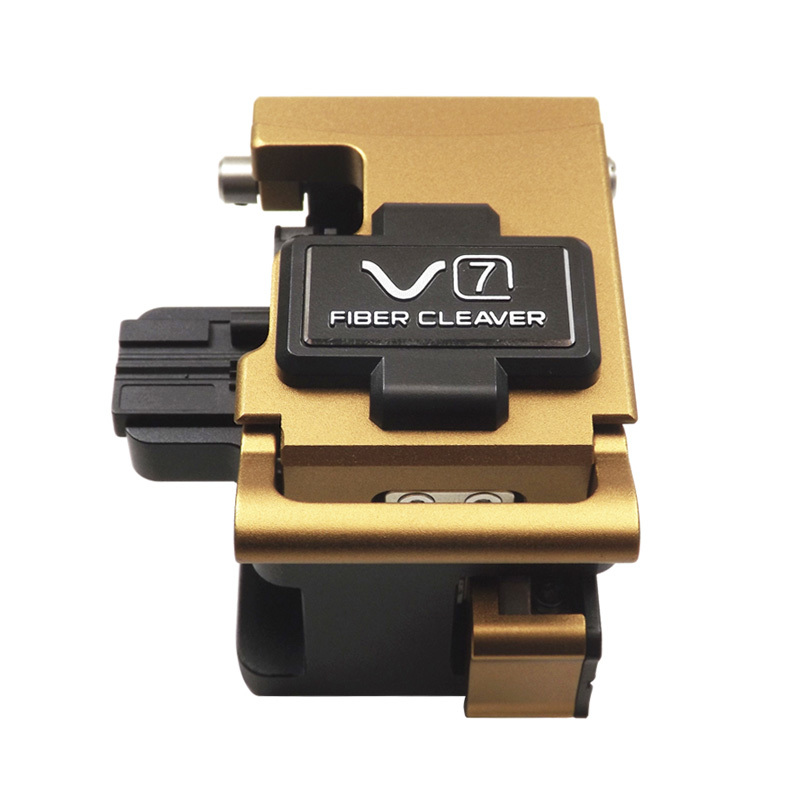

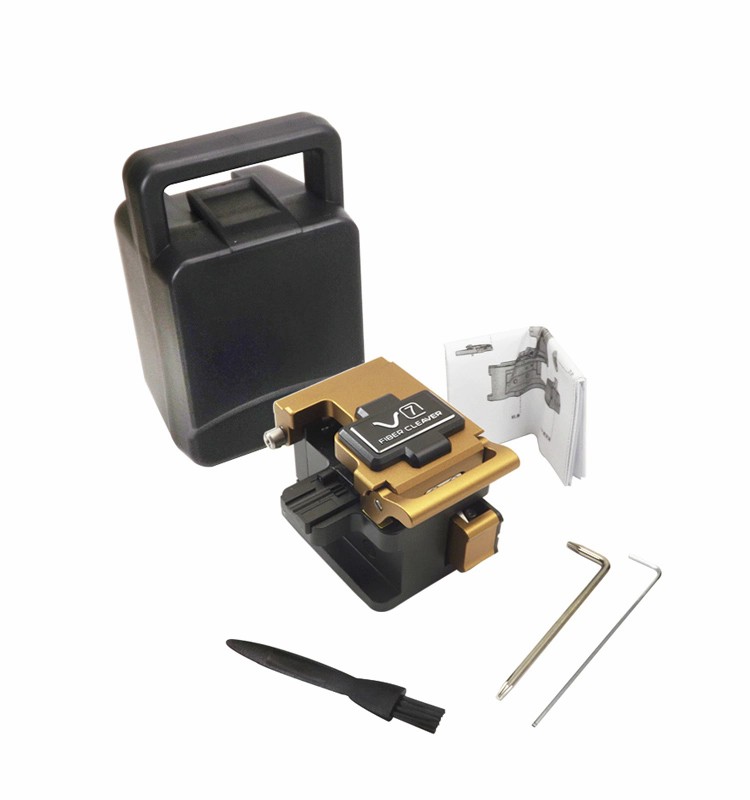

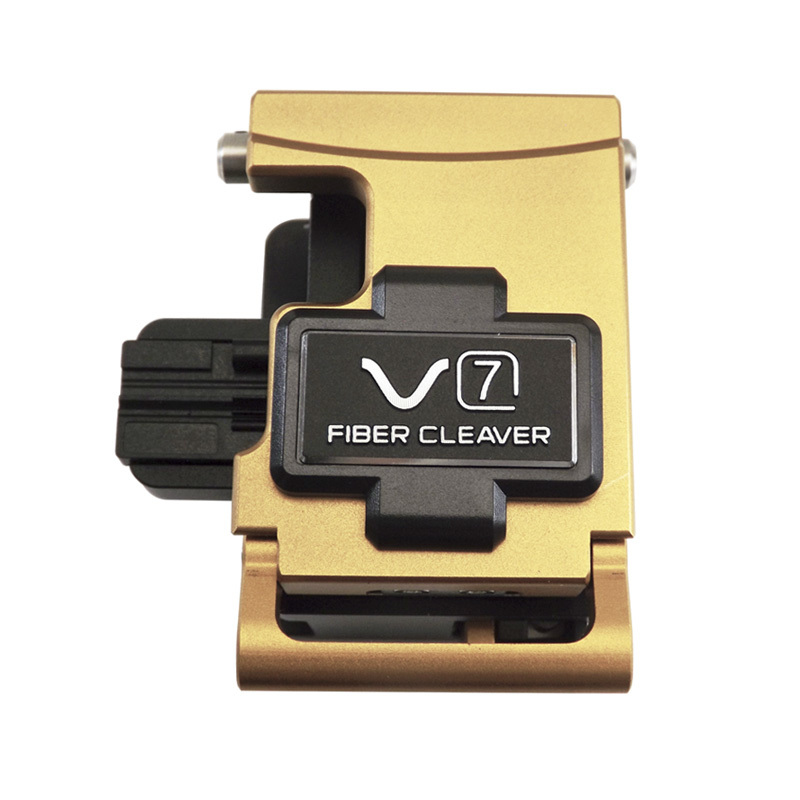

FOT-V7 Optical fiber cleaver high precision

Model:
FOT-V7 optical fiber cleaver

Minimum order quantity:
10

Payment Methods:
T/T

Delivery Time:
10 Days

Port of departure:
Qingdao

Inquire Online

Product Brief

——

Optical fiber cleaver is used to cut quartz glass optical fibers as thin as hair. The ends of the cut fiber are flat after being magnified by hundreds of times before they can be used for device packaging, cold connection, and discharge welding.

Product Operation

Can cut 48000 times

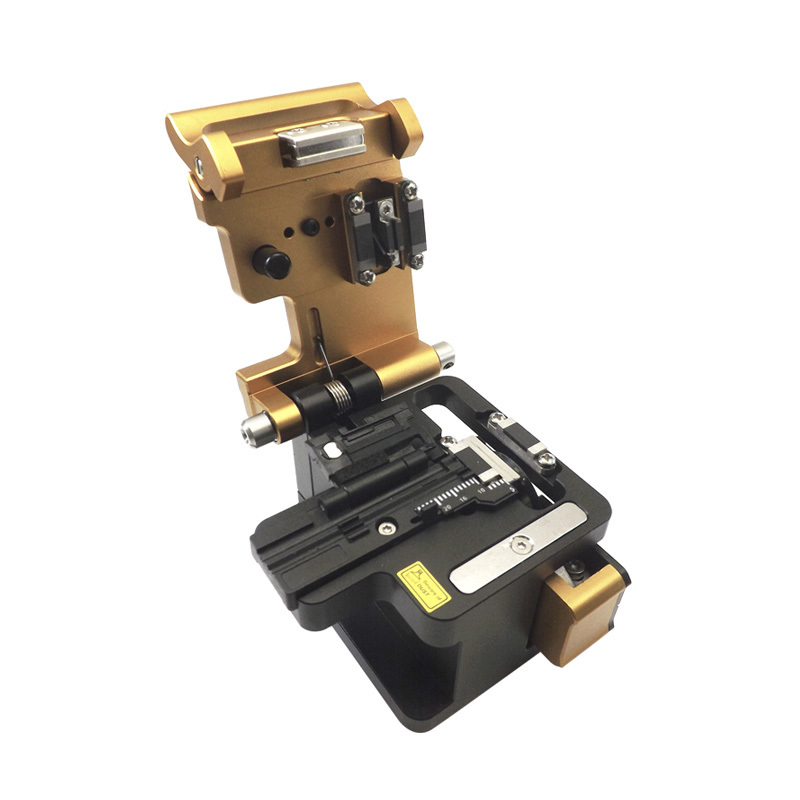

Imported blade, tungsten steel material, solid and wear-resistant, flat cut, small cross section. Automatic Re-positioning.

Operation

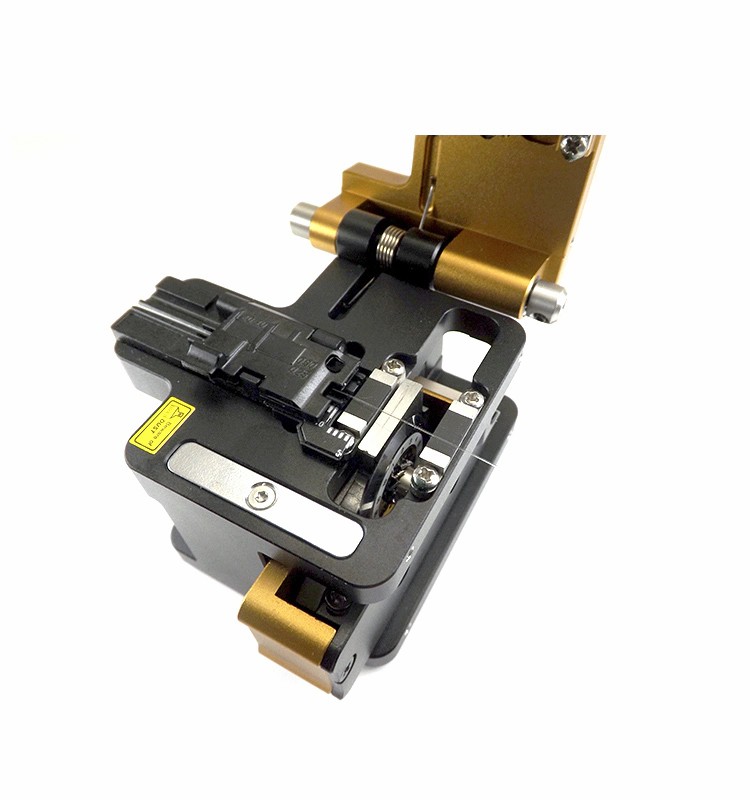

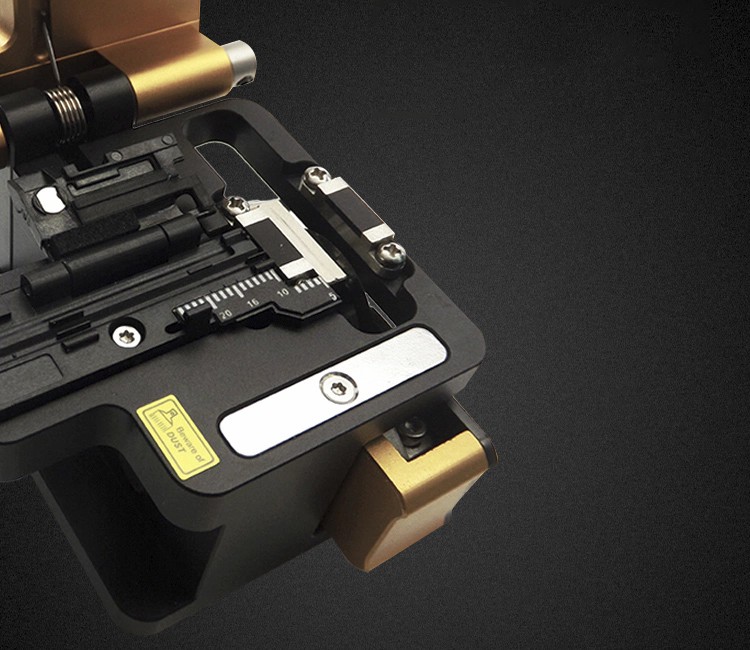

Easy and fast operation, easy fiber placement, automatic blade reset after cutting, greatly improving work efficiency, clever presser foot design, to prevent secondary fiber back injury caused by fiber Wear-resistant alloy copper presser foot, strong rebound, stable wear resistance.

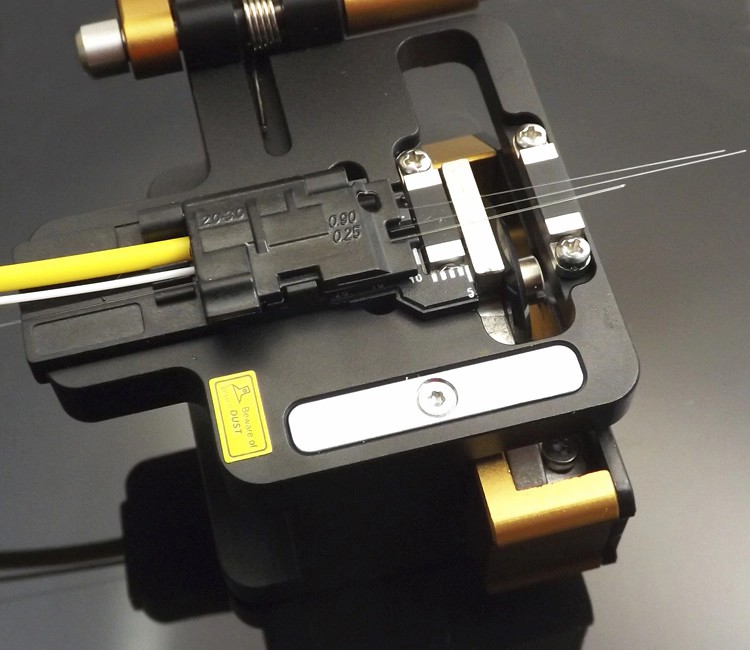

3 in 1 holder for 0.25,0.9,2.0,3.0mm fiber

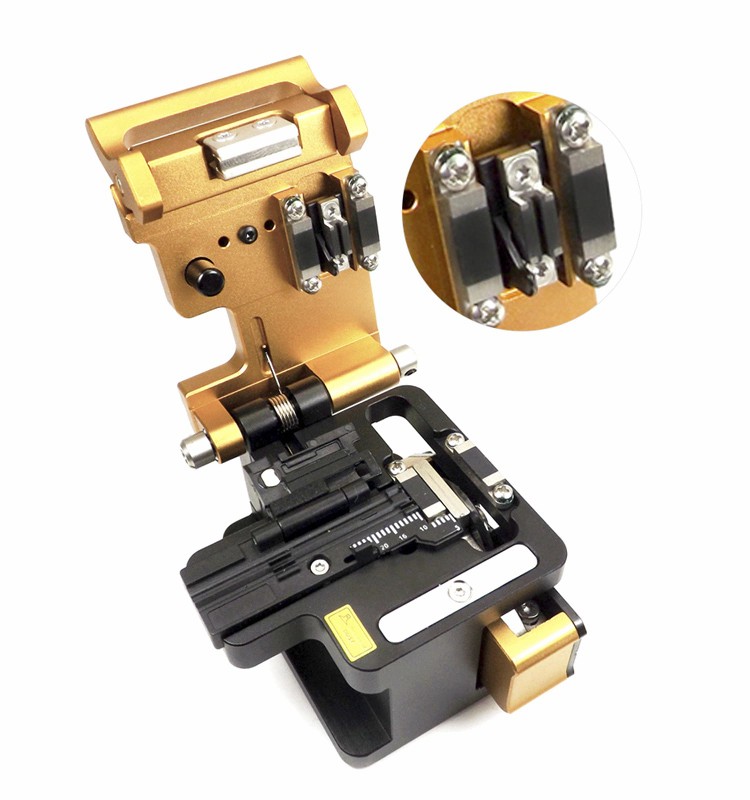

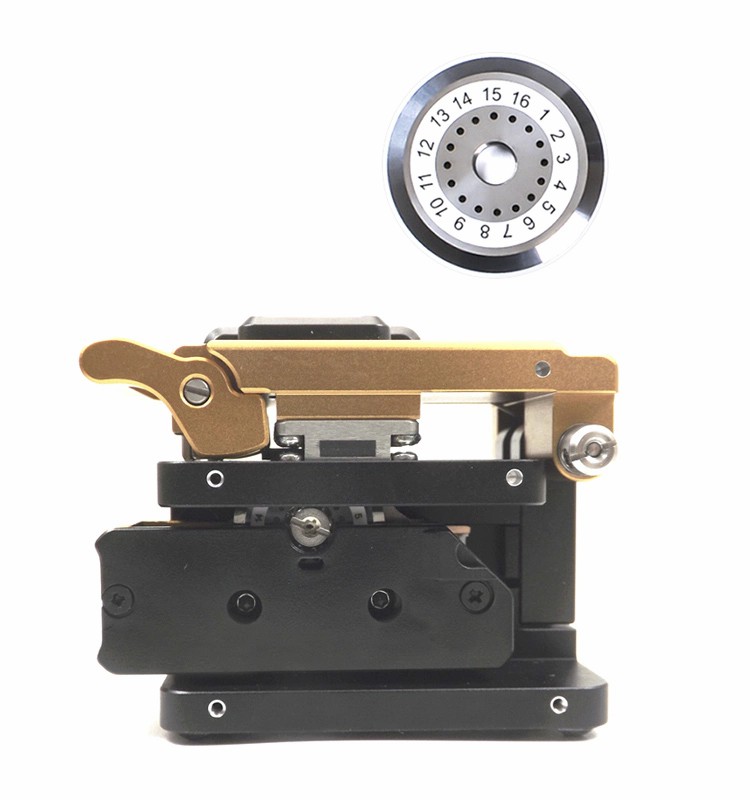

The fiber cleaver blade has a total of 16 faces and a total service life of 48,000 times. The average cutting angle is less than 0.5 degrees.

High carbon fiber gasket

Corrosion resistant, imported blade rail, easy operation

Product parameters

Product name	Fiber optic Inno view 7 Fiber Cleaver

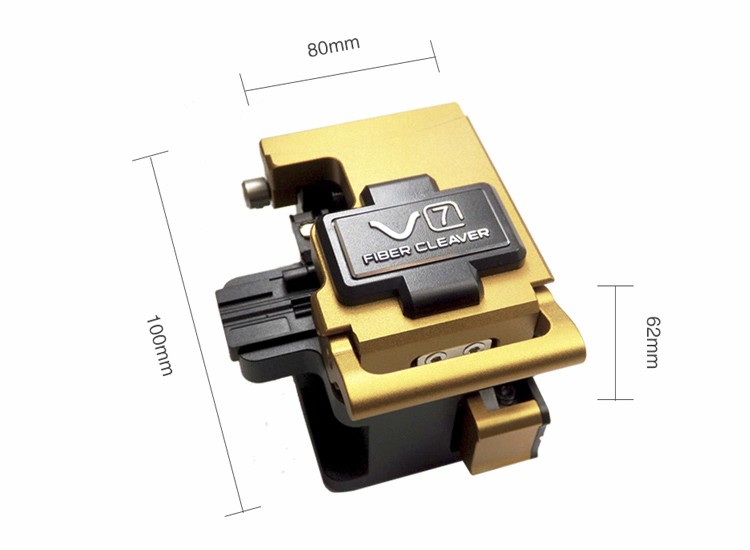

Dimension	100W x 80D x 62H[mm]
Weight	300G
Fiber Type	Single & ribbon fiber cable cleaver
Cleaved Length	Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable	Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable
Typical Cleaved Angle	Less than 0.5 Degrees
Operation Steps	1 Steps
Typical Blade Life Span	Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)
Holder	3in1 holder for 0.25, 0.9, 2.0, 3.0mm fiber

Application

FTTX Systems

PON Networks

CATV Fiber optic System

Optical Signal Distribution

The experiment, production and testing of optical devices
