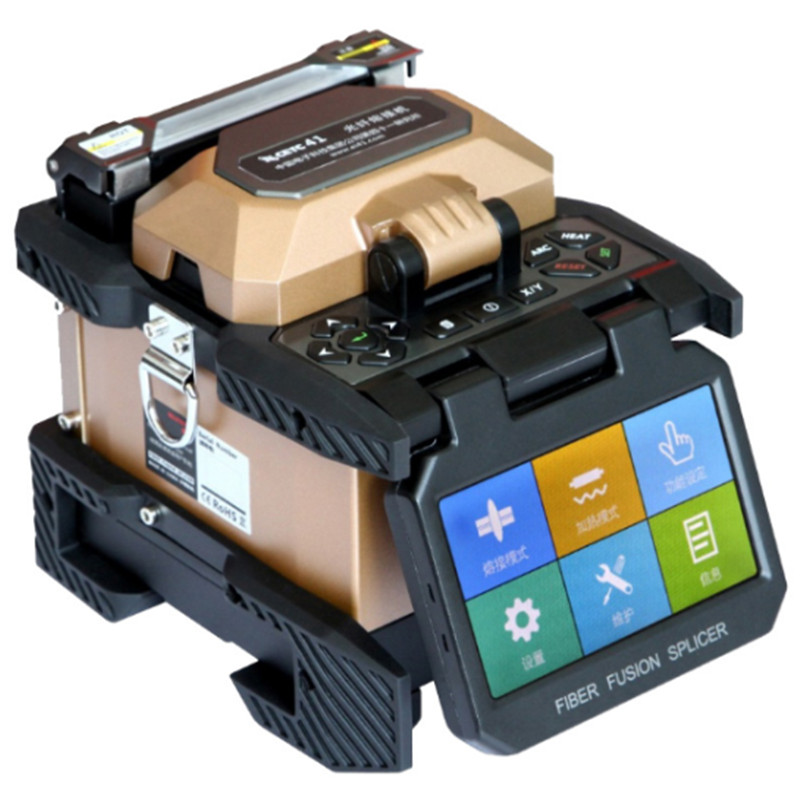

FOT6481A Optical Fiber Fusion Splicer

FOT6481A Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.


——

Technical Specifications

Model

FOT6481A Optical Fiber Fusion Splicer



Motor qty

6

Alignment method

Core alignment, manual alignment

Applicable fibers

Any common optical fibers, rubber-insulated fibers   and jumpers that meet    requirements   of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.

Optical   fiber diameter

Cladding: 80150μm, coating layer:   0.13mm

Cleave length

516mmcoated optical   fiber diameter250μm10mmcoated   optical    fiber diameter0.25~3mm

Splice losstypical

0.02dBSMF; 0.01dBMMF; 0.04dBDSF; 0.04dBNZDSF

Return loss

Better than 60dB

Splicing time (typical)

7s (Fast mode)

Heating time (typical)

18s

Tension

1.962.25N

Protection sleeve

60mm, 40mm and a series of   protection sleeves

Graphical display

High-performance 4.3 inch LCD

Magnification time

320 times/88   times

Fusion records

10000 groups

Remote maintenance

N/A

Battery capacity

11.1V, 5200mAh

Battery service life

Cycle charging: 300500   counts, can be replaced by customers

Electrode service life

Typical: 4000 counts, can be replaced by customers

Construction lighting

Built-in lights with high-brightness and wide   lighting area

Working environment

Temp:-1050Hum: 095%RHheight   above sea level: 06000m

Operation interfaces

GUI (graphical user interfaces)

External power

AC: 100240V, 60Hz, 01.5A; DC: 1015V

Port

USB / SD

Dimensions

120mmW×130mmH×154mmD)(without rubber anti-vibration pad

Weight

1.7kg the battery not included, 2.0kgincluded   the battery




Highlights

l  Small size, light weight

l  7s fast splicing, 18s highly efficient heating

l  320 times image magnification, 5mm fusing for ultra-short cleave length

l  300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage

l  Ceramic presser foot, ceramic V-groove, all-in-one fixture

l  Dual-directional fusing, auto fusing, intelligent heat shrink

l  USB and SD card interface, auto update of U disk

l  Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles

l  GUI (graphical user interface) and touch screen, convenient for operation

l  Dust-resistant, water-resistant, shock-resistant, greater environment adaptability

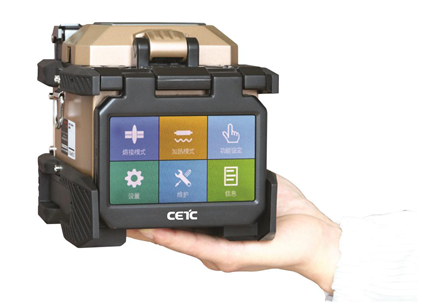

Small and light

Small size and light weight, the splicer is easy to carry and can be lift by one hand.


Water-resistant, dust-resistant, shock-resistant, greater environment adaptability

Meet IP52 requirements.


Water-resistant test                                 Dust-resistant test

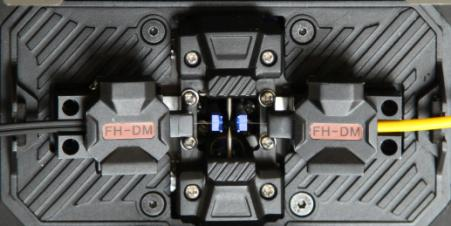

All-in-one fixer

The all-in-one fixture meet fusion demands of multiple optical fibers, jumpers and rubber-insulted wires with a cladding diameter of 80150μm.




All-in-one optical fiber fixture

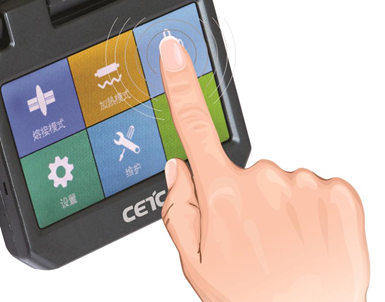

Graphical interfaces and touch screen

FOT6481 uses entirely new GUI and touch screen in design. Operators can set up the splicer and get to know relevant information of it simply and directly by graphical interfaces.




Entirely new GUI graphical interfaces and touch screen

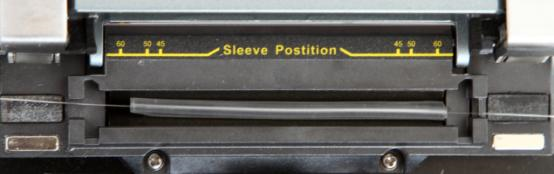

Intelligent heat shrink

A detection unit is embedded in the heater. The heating function will only be enabled when the protection sleeve is put in the heater, to avoid mishandling.




Hear and detection unit

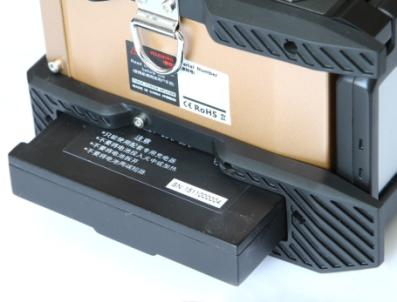

Pluggable lithium-ion battery of large-capacity

The built-in pluggable lithium-ion battery of large capacity can answer working demand lasting all day long (typical 220 counts of splicing and heating cycles).






Built-in pluggable lithium battery of large-capacity



Ceramic V-groove and ceramic presser foot

Ceramic V-groove with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.





           High-precision ceramic V-groove and presser foot

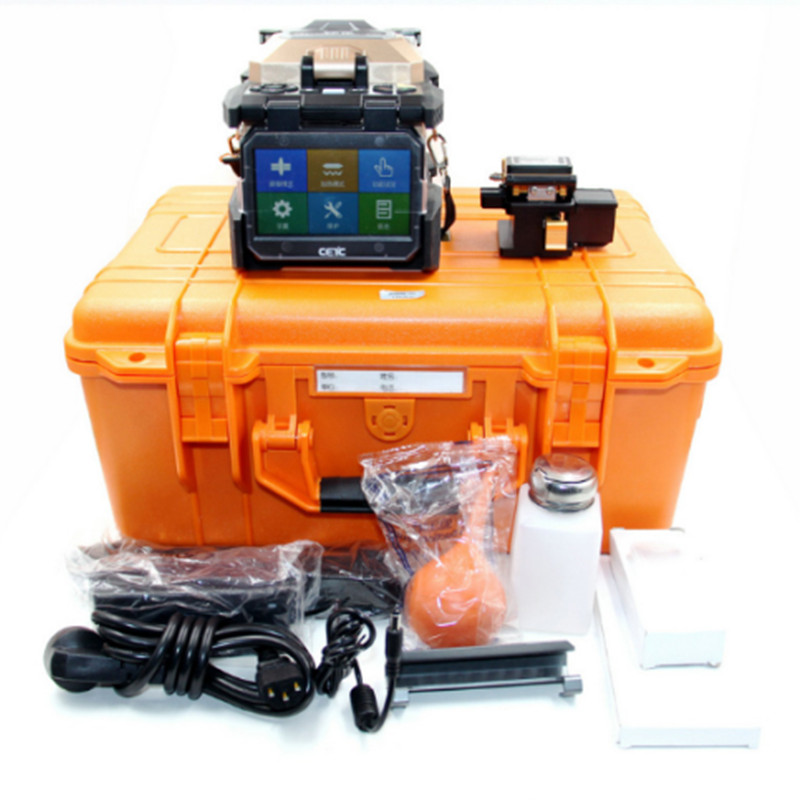

Carrying case

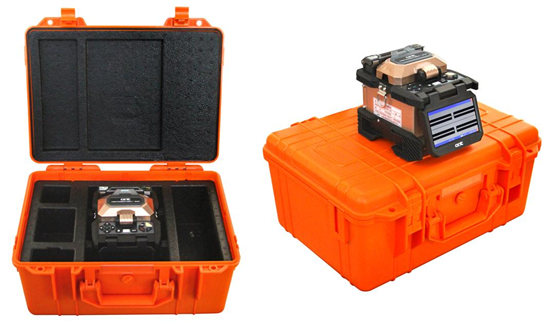

The carrying case is novel in design and light in weight, has built-in compact working bench. Open or close the cover can turn it to a working bench.




carrying case







Typical Applications

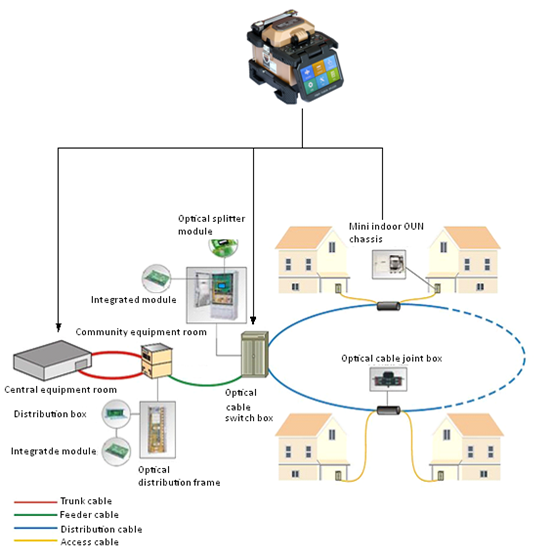

FOT6481A Optical Fiber Fusion Splicer is compact equipment deploying the design of ergonomics, which delivers convenient operation and handy carrying case. Event very short fibers can be spliced easily. It’s capable of construction and maintenance of optical fiber line projects (including trunk), emergency repair, production and test of optical fiber devices and research and study in institutes.






Typical application of FOT6481A Optical Fiber Fusion Splicer
